AIR INTAKE DUCT REMOVAL/INSTALLATION

id071100304100

1.  Set the air intake mode to REC.

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Glove compartment cover (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Heat duct (RH) (L.H.D.) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)

(5)  Heat duct (LH) (R.H.D.) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)

(6)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)

(7)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

(9)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(10)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(11)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(12)  Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

(13)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(14)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(15)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(16)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(17)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(18)  Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)

(19)  Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(20)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(21)  Sift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)

(22)  Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(23)  interlock unit (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(24)  Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

(25)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

(26)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(27)  Windshield wiper blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(28)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(29)  Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(30)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

4.  Disconnect the dashboard wiring harness connector.

5.  Disconnect the antenna feeder No.1 jack.

6.  Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION.)

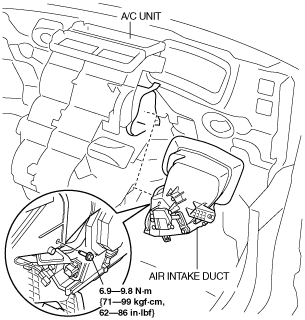

7.  Remove the air intake duct installation bolt.

am2zzw00001026

8.  Remove the air intake duct.

9.  Install in the reverse order of removal.
