WIPER/WASHER SYSTEM LOCATION INDEX

id091900910000

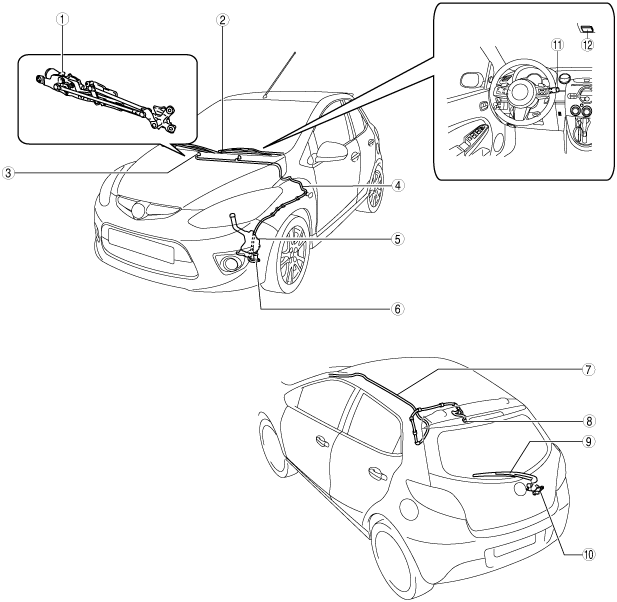

L.H.D.

am2zzw00003491

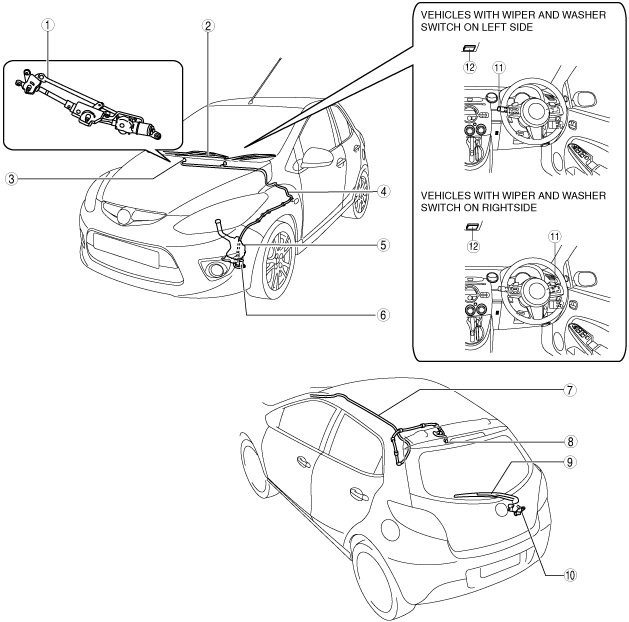

R.H.D.

am2zzw00003492

1	Windshield wiper motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.) (See WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY.) (See WINDSHIELD WIPER MOTOR INSPECTION.)
2	Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.) (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT.)
3	Windshield washer nozzle (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION.) (See WINDSHIELD WASHER NOZZLE ADJUSTMENT.)
4	Windshield washer hose (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)
5	Washer tank (See WASHER TANK REMOVAL/INSTALLATION.)
6	Washer motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.) (See WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY.)
7	Rear washer hose (See REAR WASHER HOSE REMOVAL/INSTALLATION.)
8	Rear washer nozzle (See REAR WASHER NOZZLE REMOVAL/INSTALLATION.) (See REAR WASHER NOZZLE ADJUSTMENT.)
9	Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.) (See REAR WIPER ARM AND BLADE ADJUSTMENT.)
10	Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION.) (See REAR WIPER MOTOR INSPECTION.)
11	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.) (See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.)
12	Rain sensor (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIAL SETTING.)
