CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100187600

L.H.D.

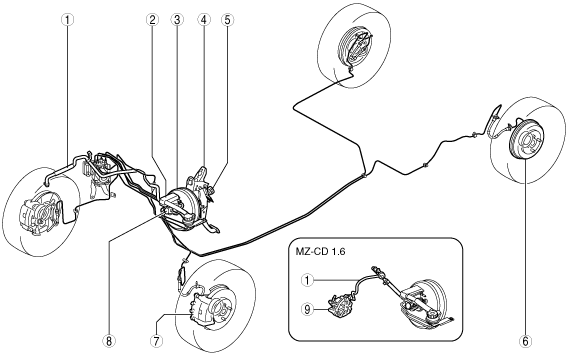

am2zzw00005328

1	Vacuum line (See VACUUM LINE INSPECTION [MZR 1.3, MZR 1.5].) (See VACUUM LINE INSPECTION [MZ-CD 1.6].) (See VACUUM HOSE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See VACUUM HOSE REMOVAL/INSTALLATION [MZ-CD 1.6].)
2	Brake fluid (See BRAKE FLUID INSPECTION.) (See BRAKE FLUID AIR BLEEDING.)
3	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION (L.H.D.).)
4	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See BRAKE PEDAL REMOVAL/INSTALLATION [MZ-CD 1.6].)
5	Brake switch (See BRAKE SWITCH INSPECTION [MTX].) (See BRAKE SWITCH INSPECTION [ATX, CVT].)
6	Rear brake (drum) (See REAR BRAKE (DRUM) INSPECTION.) (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION [MTX, ATX].) (See WHEEL CYLINDER DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
7	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
8	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
9	Vacuum pump (MZ-CD 1.6) (See VACUUM PUMP REMOVAL/INSTALLATION [MZ-CD 1.6].)

R.H.D.

am2zzw00005329

1	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].)
2	Brake fluid (See BRAKE FLUID INSPECTION.) (See BRAKE FLUID AIR BLEEDING.)
3	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION (R.H.D.) [MZR 1.3, MZR 1.5].) (See POWER BRAKE UNIT REMOVAL/INSTALLATION (R.H.D.) [MZ-CD 1.6].)
4	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See BRAKE PEDAL REMOVAL/INSTALLATION [MZ-CD 1.6].)
5	Brake switch (See BRAKE SWITCH INSPECTION [MTX].) (See BRAKE SWITCH INSPECTION [ATX, CVT].)
6	Rear brake (drum) (See REAR BRAKE (DRUM) INSPECTION.) (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION [MTX, ATX].) (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION [CVT].) (See WHEEL CYLINDER DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
7	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
8	Vacuum line (See VACUUM LINE INSPECTION [MZR 1.3, MZR 1.5].) (See VACUUM LINE INSPECTION [MZ-CD 1.6].) (See VACUUM HOSE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See VACUUM HOSE REMOVAL/INSTALLATION [MZ-CD 1.6].)
9	Vacuum pump (MZ-CD 1.6) (See VACUUM PUMP REMOVAL/INSTALLATION [MZ-CD 1.6].)
