AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]
id0740a1801600
L.H.D.
-
Warning
-
• Touching the heater pipe while the engine coolant is hot can cause severe burns or serious injury. Verify that the engine coolant temperature sufficiently has decreased before servicing.
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (2) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (3) Boot panel (See FRONT CONSOLE COMPONENT DISASSEMBLY/ASSEMBLY.)
- (4) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (5) Front console (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (8) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (9) Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)
- (10) Heat duct (LH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)

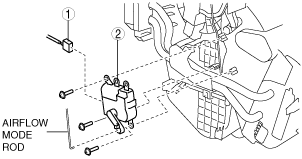

3. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Airflow mode actuator
|
4. Install in the reverse order of removal.
Airflow mode actuator removal note
1. Remove the airflow mode rod from the airflow mode actuator.
R.H.D.
-
Warning
-
• Touching the heater pipe while the engine coolant is hot can cause severe burns or serious injury. Verify that the engine coolant temperature sufficiently has decreased before servicing.
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (2) Glove compartment cover (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)
- (3) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (4) Heat duct (LH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)

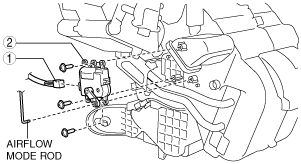

3. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Airflow mode actuator
|
4. Install in the reverse order of removal.
Airflow mode actuator removal note
1. Remove the airflow mode rod from the airflow mode actuator.
