INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200495000

MZR 1.3, MZR 1.5

L.H.D.

am2zzw00007015

R.H.D.

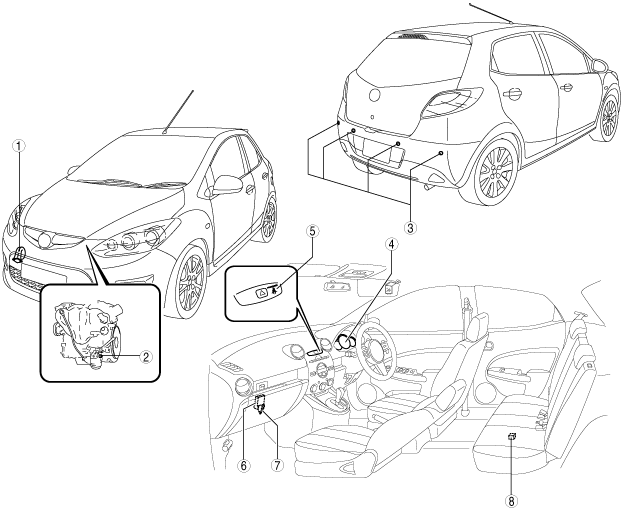

am2zzw00007016

1	Horn (See HORN REMOVAL/INSTALLATION.)
2	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION.)
3	Ultrasonic sensor (with parking sensor system) (See ULTRASONIC SENSOR REMOVAL.) (See ULTRASONIC SENSOR INSTALLATION.)
4	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER CONFIGURATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
5	Passenger seat belt reminder (See PASSENGER SEAT BELT REMINDER REMOVAL/INSTALLATION.) (See PASSENGER SEAT BELT REMINDER INSPECTION.)
6	Parking sensor control module (with parking sensor system) (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.) (See PARKING SENSOR CONTROL MODULE INSPECTION.) (See BEEP SOUND ADJUSTMENT.)
7	Parking sensor buzzer (with parking sensor system) (See PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See PARKING SENSOR BUZZER INSPECTION.)
8	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.) (See FUEL GAUGE SENDER UNIT INSPECTION.)

MZ-CD 1.6

L.H.D.

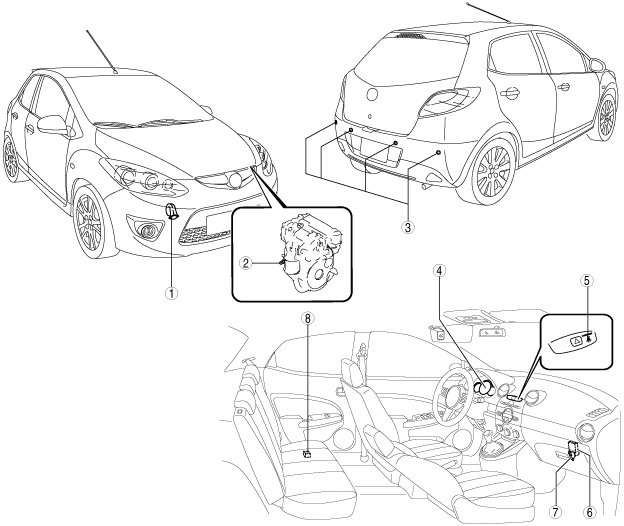

am2zzw00007017

R.H.D.

am2zzw00007018

1	Horn (See HORN REMOVAL/INSTALLATION.)
2	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION.)
3	Ultrasonic sensor (with parking sensor system) (See ULTRASONIC SENSOR REMOVAL.) (See ULTRASONIC SENSOR INSTALLATION.)
4	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER CONFIGURATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
5	Passenger seat belt reminder (See PASSENGER SEAT BELT REMINDER REMOVAL/INSTALLATION.) (See PASSENGER SEAT BELT REMINDER INSPECTION.)
6	Parking sensor control module (with parking sensor system) (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.) (See PARKING SENSOR CONTROL MODULE INSPECTION.) (See BEEP SOUND ADJUSTMENT.)
7	Parking sensor buzzer (with parking sensor system) (See PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See PARKING SENSOR BUZZER INSPECTION.)
8	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.) (See FUEL GAUGE SENDER UNIT INSPECTION.)
