CONTROL SYSTEM LOCATION INDEX [MZ-CD 1.6 (Y6) (EURO4 emission level)]

id0140j5804100

Engine Compartment Side

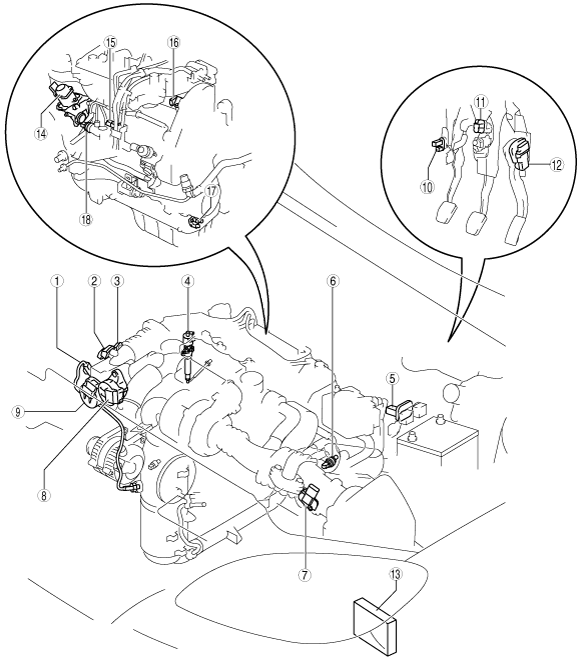

am3zzw00008120

1	Catalyst exhaust gas temperature sensor (See CATALYST EXHAUST GAS TEMPERATURE SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
2	MAP sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
3	IAT sensor No.2 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
4	Fuel injector (See FUEL INJECTOR CALIBRATION CODE PROGRAM [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
5	Diesel particulate filter differential pressure sensor (See DIESEL PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See DIESEL PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See DIESEL PARTICULATE FILTER LEARNED VALUE RESET [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
6	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
7	MAF/IAT sensor (See MASS AIR FLOW (MAF) SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
8	Air bypass valve position sensor (See AIR BYPASS VALVE POSITION SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
9	EGR throttle valve position sensor (See EGR THROTTLE VALVE POSITION SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See EGR THROTTLE VALVE BASE VALUE RESET [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
10	CPP switch (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
11	BPP switch (See BRAKE PEDAL POSITION (BPP) SWITCH INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
12	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
13	PCM (Built-in BARO sensor) (See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See PCM INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See PCM CONFIGURATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
14	EGR valve position sensor (See EGR VALVE POSITION SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See EGR VALVE BASE VALUE RESET [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
15	Fuel temperature sensor (See FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See FUEL TEMPERATURE SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
16	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
17	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
18	Fuel pressure sensor (See FUEL PRESSURE SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)

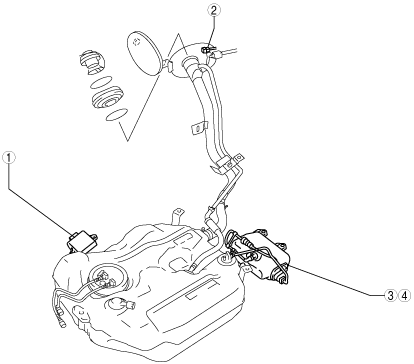

am3zzw00008126

1	Fuel additive control module (See FUEL ADDITIVE CONTROL MODULE REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See FUEL ADDITIVE CONTROL MODULE INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See FUEL ADDITIVE CONTROL MODULE CONFIGURATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See FUEL ADDITIVE LEVEL DATA RESET [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
2	Fuel-filler switch (See FUEL-FILLER SWITCH REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See FUEL-FILLER SWITCH INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
3	Fuel additive pump unit (See FUEL ADDITIVE PUMP UNIT INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
4	Fuel additive level sensor (See FUEL ADDITIVE LEVEL SENSOR INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
