AIR MIX ACTUATOR REMOVAL/INSTALLATION

id074000802400

1.   Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front doors (See FRONT DOOR REMOVAL/INSTALLATION.)

(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6)  PJB (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.)

(7)  Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Ashtray panel

(10)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(11)  Shift lever component (MTX) (See SHIFT MECHANISM REMOVAL/INSTALLATION[EXCEPT A26M-R].) (See SHIFT MECHANISM REMOVAL/INSTALLATION[A26M-R].)

(12)  Selector lever component (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(13)  Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(14)  Bonnet release lever from the lower panel

(15)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(16)  Shower ducts (LH, RH)

(17)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(18)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(19)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(20)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(21)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(22)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(23)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(24)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(25)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

(26)  Windshield wiper motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)

3.  Disconnect the following connectors:

―  Blower motor connector

―  Power MOS FET connector

―  Evaporator temperature sensor connector

―  Air intake actuator connector

―  Air mix actuator connector

―  Airflow mode actuator connector

4.  Remove the rear heat duct (1).

5.  Remove the heater case. (See A/C UNIT REMOVAL/INSTALLATION.)

6.  Remove the nuts and bolts for installing the dashboard to the body.

7.  Slide the dashboard.

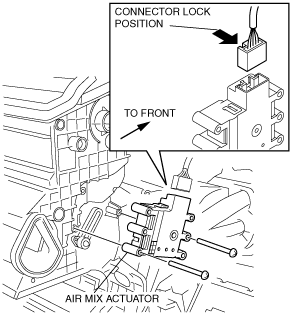

8.  Remove in the air mix actuator.

am3zzw00000758

9.  Install in the reverse order of removal.
