SECURITY AND LOCKS LOCATION INDEX
id091400800100

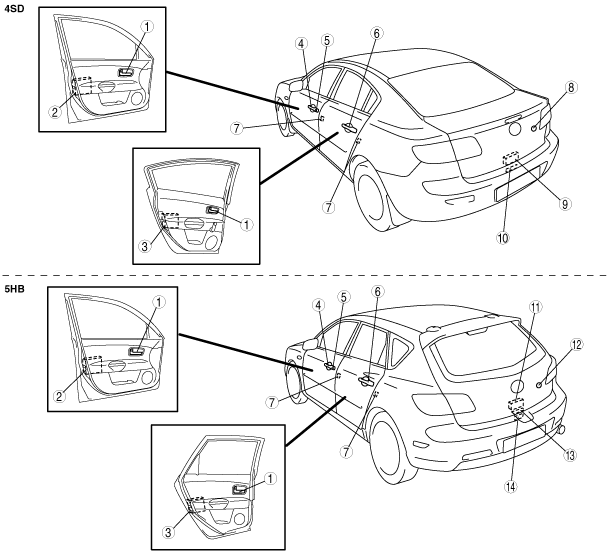

am3zzw00002661
|
1
|
Inner handle
|
2
|
Front door latch and lock actuator
|
3
|
Rear door latch and lock actuator
|
4
|
Front outer handle
|
5
|
Front door key cylinder
|
6
|
Rear outer handle
|
7
|
Door lock striker
|
8
|
Trunk lid key cylinder
|
9
|
Trunk lid latch and opener
(See TRUNK LID OPENER INSPECTION.)
|
10
|
Trunk lid lock striker
|
11
|
Liftgate latch and lock actuator
|
12
|
Liftgate key cylinder
|
13
|
Liftgate outer handle
|
14
|
Liftgate lid lock striker
|

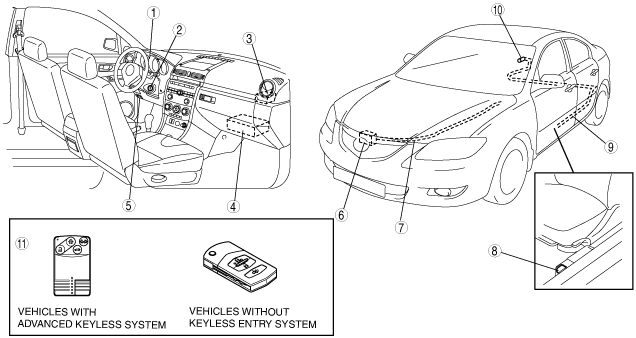

am3zzw00002662
|
1
|
Instrument cluster
|
2
|
Coil antenna
|
3
|
Keyless control module
|
4
|
PJB
|
5
|
Bonnet release lever
|
6
|
Bonnet latch
|
7
|
Bonnet cable
|
8
|
Fuel-fuller lid opener lever
|
9
|
Fuel-fuller lid opener cable
|
10
|
Fuel-fuller lid opener
|
11
|
Transmitter
|
am3zzw00002663
|
1
|
Intruder sensor
|
2
|
Theft-deterrent siren
|
