KEYLESS RECEIVER REMOVAL/INSTALLATION

id091400514300


L.H.D.

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Remove the following parts:

(1)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(4)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(5)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(7)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(8)  Console (See CONSOLE REMOVAL/INSTALLATION.)

3.  Set the bonnet release lever out of the way. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

4.  Remove the lower panel. (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

5.  Disconnect the connector.

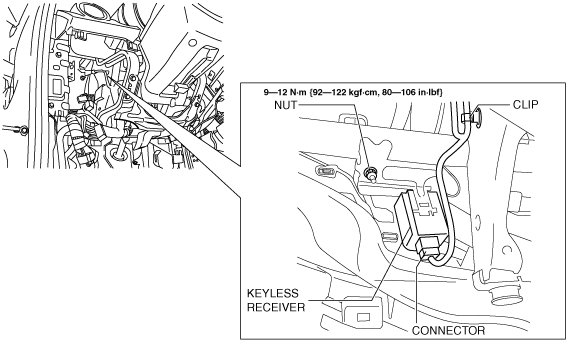

am3zzw00011869

6.  Remove the nut.

7.  Remove the keyless receiver.

8.  Install in the reverse order of removal.


R.H.D.

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(4)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(5)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(7)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(8)  Console (See CONSOLE REMOVAL/INSTALLATION.)

3.  Set the bonnet release lever out of the way. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

4.  Remove the lower panel. (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

5.  Set the keyless control module out of the way. (With advanced keyless entry and push button start system) (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION.)

6.  Disconnect the connector.

am3zzw00005183

7.  Remove the nut.

8.  Remove the keyless receiver.

9.  Install in the reverse order of removal.
