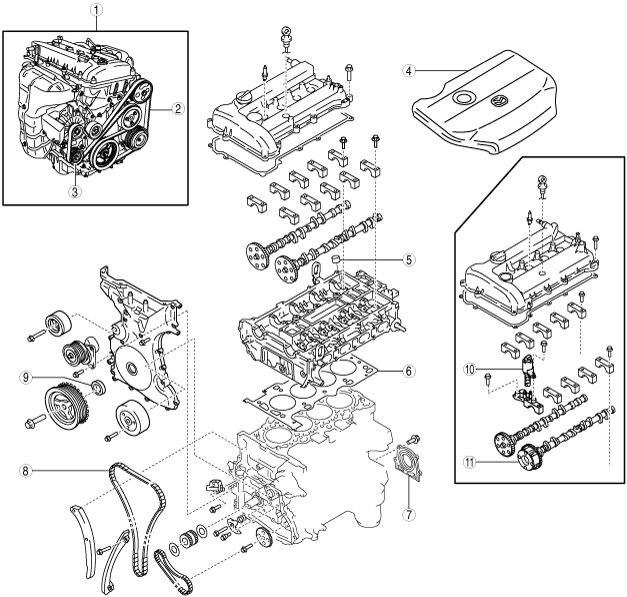

ENGINE LOCATION INDEX [MZR 1.8, MZR 2.0, MZR 2.5]

id011005800100

am6zzw00005116

1	Engine (See ENGINE TUNE-UP [MZR 1.8, MZR 2.0, MZR 2.5].) (See COMPRESSION INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].) (See ENGINE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See ENGINE DISASSEMBLY/ASSEMBLY [MZR 1.8, MZR 2.0, MZR 2.5].)
2	Drive belt (See DRIVE BELT REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See DRIVE BELT INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
3	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].) (See ENGINE DISASSEMBLY/ASSEMBLY [MZR 1.8, MZR 2.0, MZR 2.5].)
4	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)
5	Tappet (See VALVE CLEARANCE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].) (See VALVE CLEARANCE ADJUSTMENT [MZR 1.8, MZR 2.0, MZR 2.5].)
6	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [MZR 1.8, MZR 2.0, MZR 2.5].)
7	Rear oil seal (See REAR OIL SEAL REPLACEMENT [MZR 1.8, MZR 2.0, MZR 2.5].)
8	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)
9	Front oil seal (See FRONT OIL SEAL REPLACEMENT [MZR 1.8, MZR 2.0, MZR 2.5].)
10	OCV (With variable valve timing mechanism) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See OIL CONTROL VALVE (OCV) INSPECTION [MZR 2.0, MZR 2.5].)
11	Variable valve timing actuator (With variable value timing mechanism) (See VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See VARIABLE VALVE TIMING ACTUATOR INSPECTION [MZR 2.0, MZR 2.5].)
