CONDENSER REMOVAL/INSTALLATION

id092000803000

4SD

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

(6)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

am6zzw00000362

1	Connector
2	Bolt
3	Condenser

4.  Install in the reverse order of removal.

5HB

C-pillar inner (LH)

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

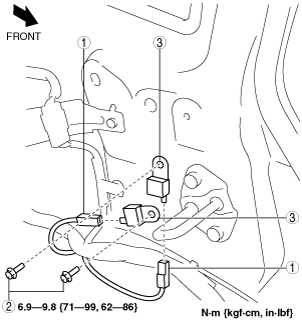

am6zzw00001372

1	Connector
2	Bolt
3	Condenser

4.  Install in the reverse order of removal.

Liftgate

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

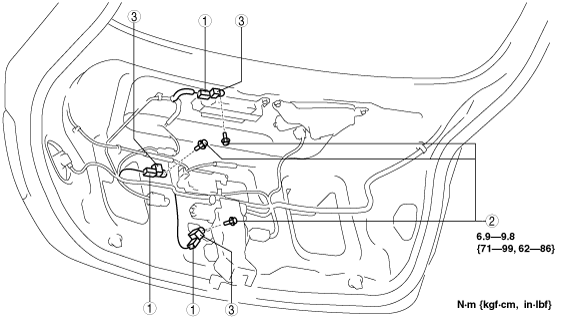

am6zzw00000363

1	Connector
2	Bolt
3	Condenser
