CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION

id074000807800

L.H.D.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(4) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(5) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(8) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(9) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(10) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(11) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(12) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(13) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)

(14) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(15) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(16) Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(17) Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

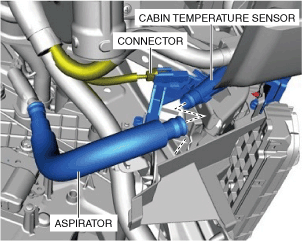

3. Disconnect the connector.

am6zzw00016093

4. Disconnect the aspirator from the cabin temperature sensor.

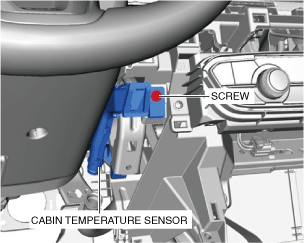

5. Remove the screw.

am6zzw00016094

6. Remove the cabin temperature sensor.

am6zzw00016095

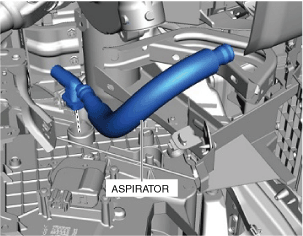

7. Remove the aspirator.

am6zzw00016096

8. Install in the reverse order of removal.

R.H.D.
