FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION

id091400510800


L.H.D.


4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Lap pre-tensioner seat belt (LH) (with lap pre-tensioner seat belt)(See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(6)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Rear seat side back (LH) (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)
(8)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(9)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(10)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(11)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(12)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(13)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(14)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

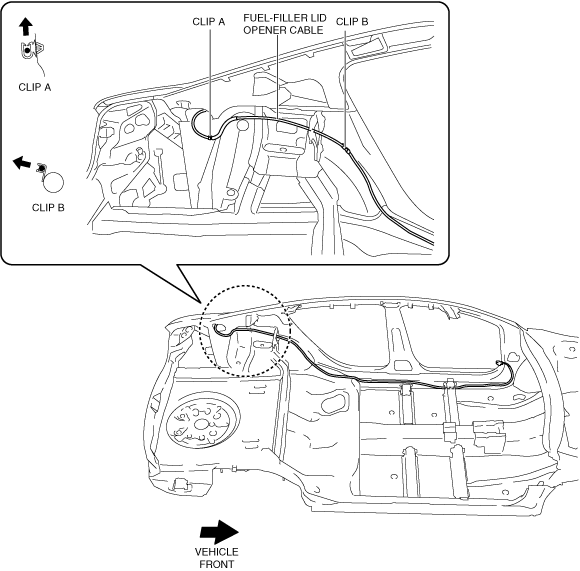

3.  Remove the fuel-filler lid opener cable from clips A and B.

am6zzw00015653

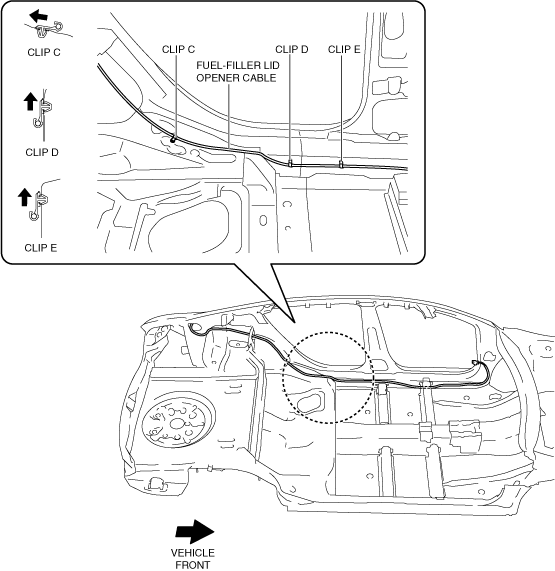

4.  Remove the fuel-filler lid opener cable from clips C, D, and E.

am6zzw00015654

5.  Remove the fuel-filler lid opener cable from clips F and G.

am6zzw00015655

6.  Pull the fuel-filler lid opener cable from the crossmember.

7.  Install in the reverse order of removal.


WGN

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Lap pre-tensioner seat belt (LH) (with lap pre-tensioner seat belt)(See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(6)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(8)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(9)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(10)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(11)  Rear seat belt lower anchor installation bolt (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(12)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(13)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(14)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(15)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

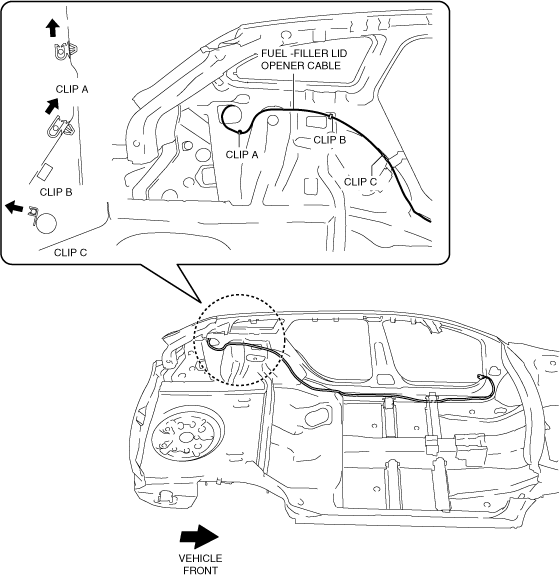

3.  Remove the fuel-filler lid opener cable from clips A, B, and C.

am6zzw00015656

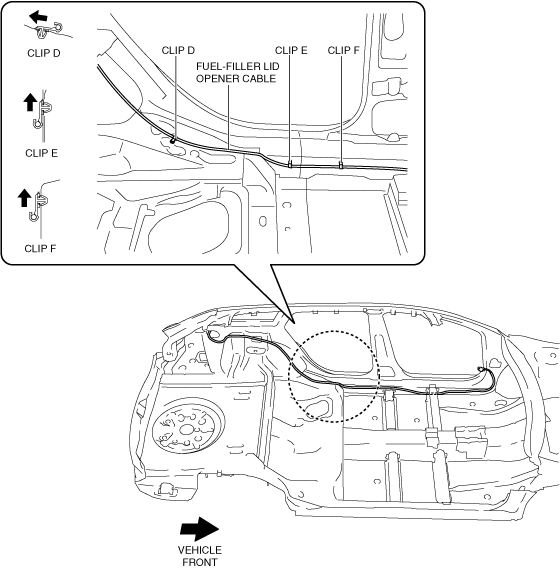

4.  Remove the fuel-filler lid opener cable from clips D, E, and F.

am6zzw00015657

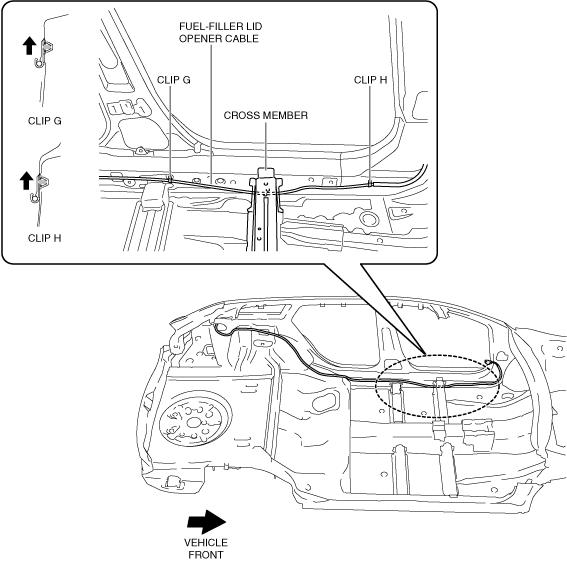

5.  Remove the fuel-filler lid opener cable from clips G and H.

am6zzw00015658

6.  Pull the fuel-filler lid opener cable from the crossmember.

7.  Install in the reverse order of removal.


R.H.D.


4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Lap pre-tensioner seat belt (RH) (with lap pre-tensioner seat belt)(See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(6)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)
(8)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(9)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(10)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(11)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(12)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(13)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(14)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

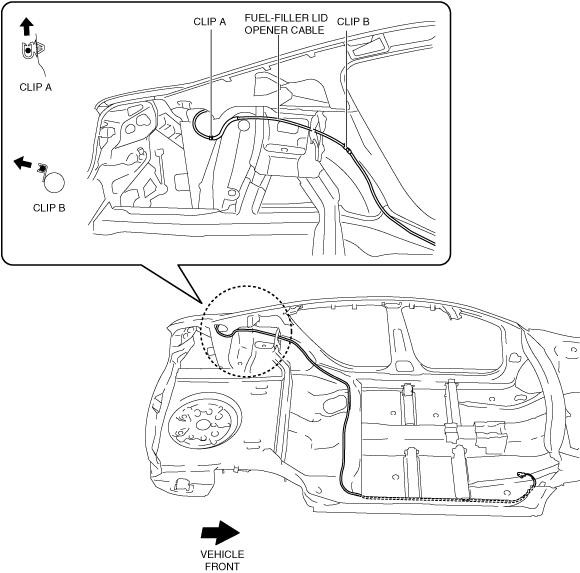

3.  Remove the fuel-filler lid opener cable from clips A and B.

am6zzw00015659

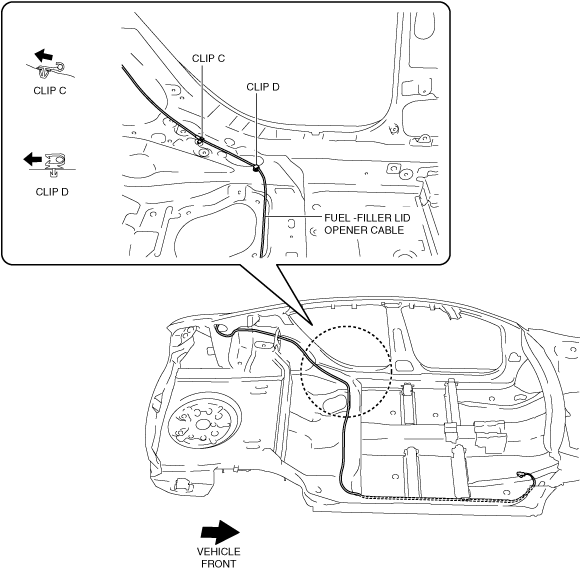

4.  Remove the fuel-filler lid opener cable from clips C and D.

am6zzw00015660

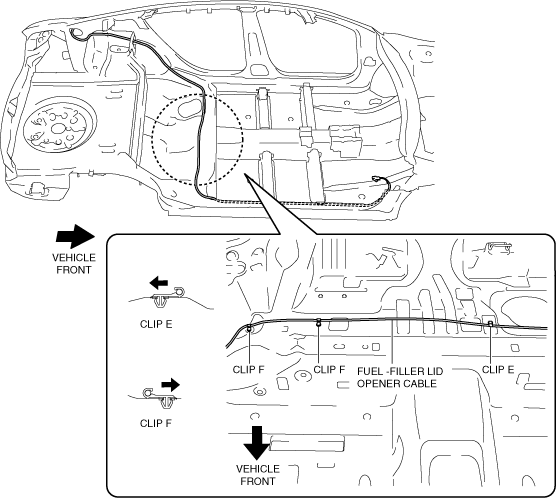

5.  Remove the fuel-filler lid opener cable from clips E and F.

am6zzw00015661

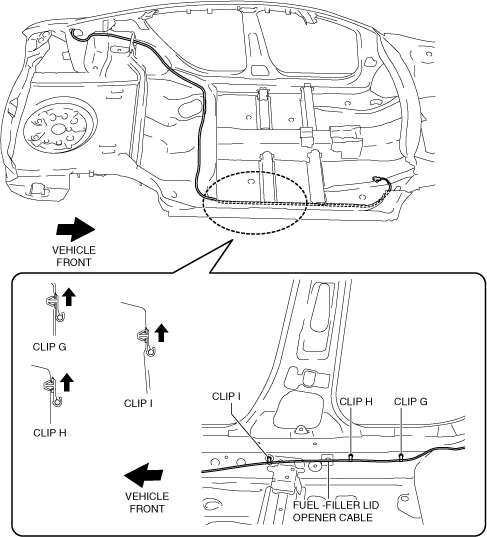

6.  Remove the fuel-filler lid opener cable from clips G, H, and I.

am6zzw00015662

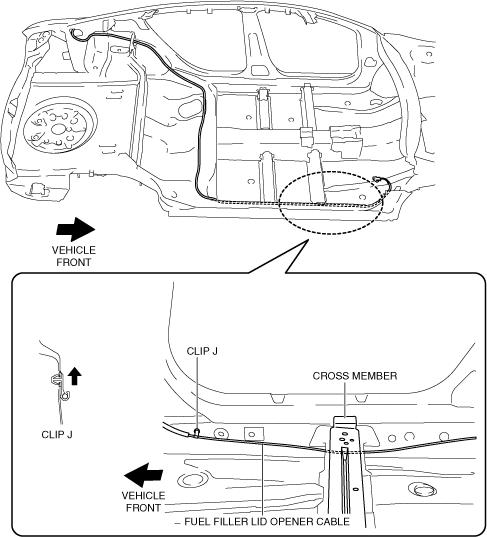

7.  Remove the fuel-filler lid opener cable from clip J.

am6zzw00015663

8.  Pull the fuel-filler lid opener cable from the crossmember.

9.  Install in the reverse order of removal.


WGN

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Lap pre-tensioner seat belt (RH) (with lap pre-tensioner seat belt)(See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(6)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(8)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(9)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(10)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(11)  Rear seat belt lower anchor installation bolt (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(12)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(13)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(14)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(15)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

3.  Remove the fuel-filler lid opener cable from clips A, B, and C.

am6zzw00015664

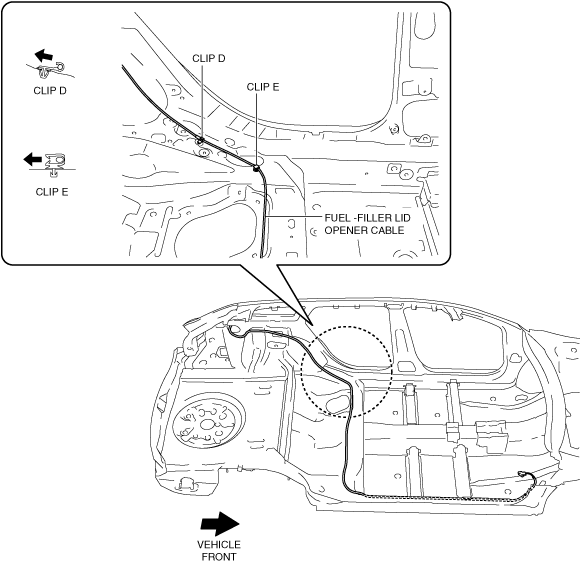

4.  Remove the fuel-filler lid opener cable from clips D and E.

am6zzw00015665

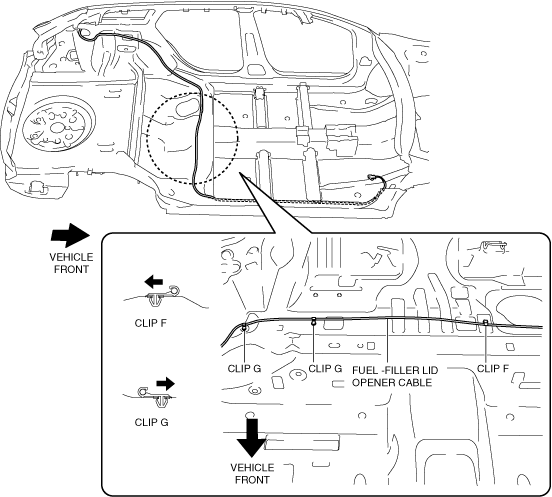

5.  Remove the fuel-filler lid opener cable from clips F and G.

am6zzw00015666

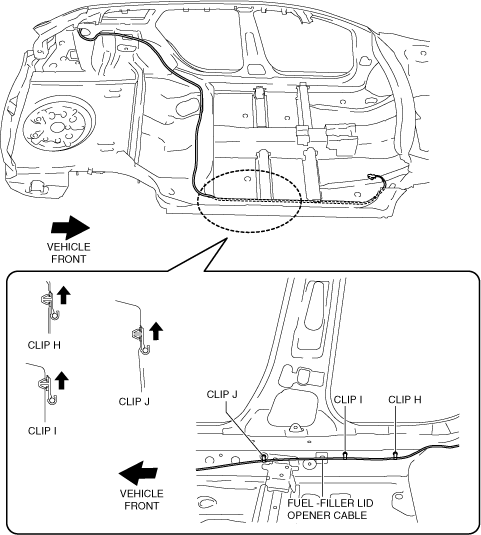

6.  Remove the fuel-filler lid opener cable from clips H, I, and J.

am6zzw00015667

7.  Remove the fuel-filler lid opener cable from clip K.

am6zzw00015668

8.  Pull the fuel-filler lid opener cable from the crossmember.

9.  Install in the reverse order of removal.
