CONSOLE SIDE PANEL REMOVAL/INSTALLATION

id091700606600

Console Side Panel No.1

Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(4)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(5)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

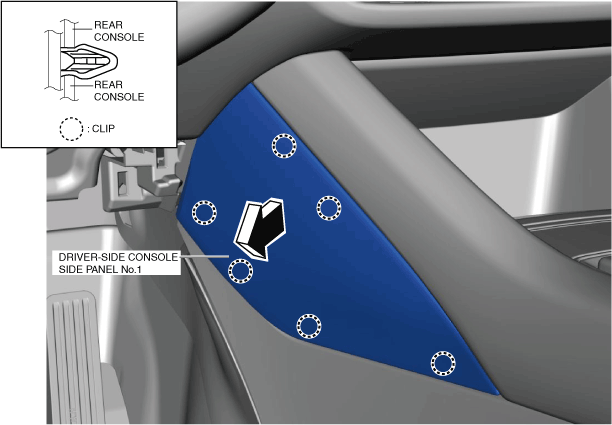

3.  Remove the driver-side console side panel No.1 in the direction of arrow shown in the figure while detaching clips.

am6xuw00012653

4.  Install in the reverse order of removal.

Passenger-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(3)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(4)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(5)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

3.  Move the console panel in the order of arrows (1), (2) shown in the figure, and remove it while detaching the hooks, clips.

am6xuw00011867

4.  Remove the cushion tape.

am6xuw00011869

5.  Remove the sheet cushion.

6.  Remove the screws.

am6xuw00011870

7.  Remove the fasteners.

am6xuw00011871

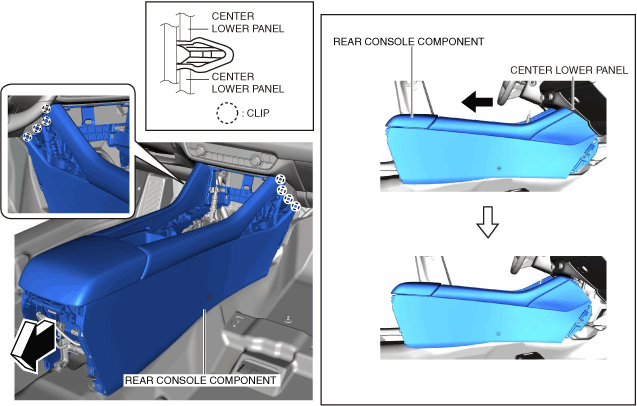

8.  Move the rear console component in the direction of the arrow shown in the figure and detach the clips of the center lower panel and rear console component.

am6xuw00012656

9.  Remove the passenger-side console side panel No.1 in the direction of arrow shown in the figure while detaching clips.

am6xuw00012655

10.  Install in the reverse order of removal.

Console Side Panel No.2

1.  For the console side panel No.2 removal/installation, refer to the upper panel disassembly/assembly. (See UPPER PANEL DISASSEMBLY/ASSEMBLY.)
