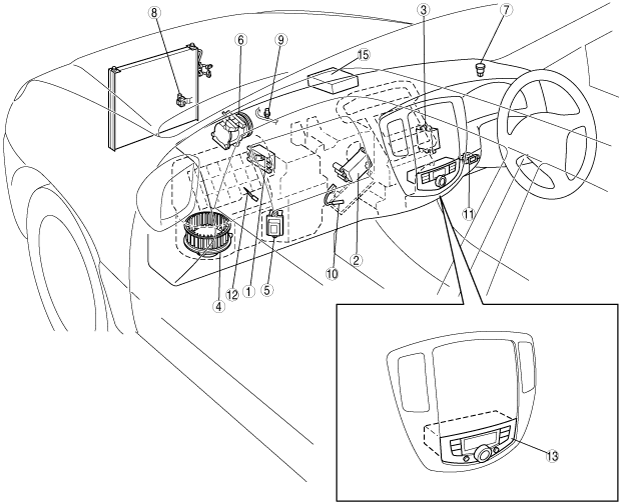

CONTROL SYSTEM LOCATION INDEX


id074000800100

aesffw00000312

1
Air intake actuator
2
Air mix actuator
3
Airflow mode actuator
4
Blower motor
5
Power MOS FET
6
Magnetic clutch
7
Solar radiation sensor
8
Ambient temperature sensor
9
Refrigerant pressure switch
10
Water temperature sensor
11
Cabin temperature sensor
12
Evaporator temperature sensor
13
Climate control unit
