FUEL SYSTEM LOCATION INDEX [L3]

id0114a2800100

R.H.D. Model

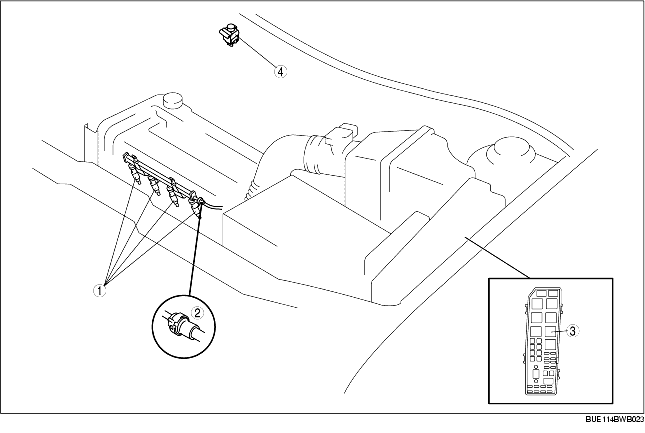

Engine compartment side


1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [L3].) (See FUEL INJECTOR INSPECTION [L3 R.H.D.].)
2	Quick release connector (in engine compartment) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L3].)
3	Fuel pump relay (See RELAY INSPECTION.)
4	Fuel pump stop switch (See FUEL PUMP STOP SWITCH REMOVAL/INSTALLATION [L3].) (See FUEL PUMP STOP SWITCH INSPECTION [L3].)

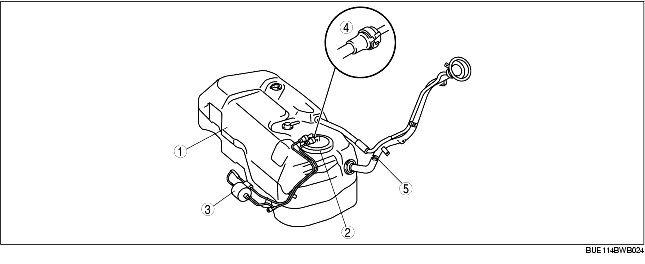

Fuel tank side


1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [L3].) (See FUEL TANK INSPECTION [L3 R.H.D.].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [L3].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [L3].) (See FUEL PUMP UNIT INSPECTION [L3 R.H.D.].)
3	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [L3].)
4	Quick release connector (fuel tank side) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L3].)
5	Nonreturn valve (See NONRETURN VALVE INSPECTION [L3].)

L.H.D. Model

Engine compartment side


1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [L3].)
2	Quick release connector (in engine compartment) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L3].)
3	Fuel pump relay (See RELAY INSPECTION.)
4	Fuel pump stop switch (See FUEL PUMP STOP SWITCH REMOVAL/INSTALLATION [L3].) (See FUEL PUMP STOP SWITCH INSPECTION [L3].)
5	Fuel temperature/fuel pressure sensor (See FUEL INJECTOR REMOVAL/INSTALLATION [L3].)

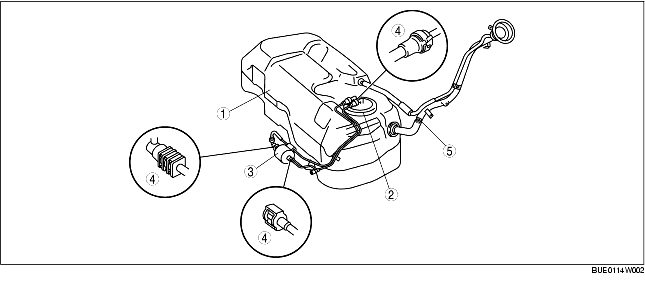

Fuel tank side


1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [L3].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [L3].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [L3].)
3	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [L3].)
4	Quick release connector (fuel tank side) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L3].)
5	Nonreturn valve (See NONRETURN VALVE INSPECTION [L3].)
