SUNROOF UNIT REMOVAL/INSTALLATION

id091500800700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

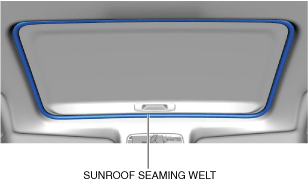

2.  Remove the sunroof seaming welt.

ac5uuw00006586

3.  Remove the following parts:

(1)  Glass panel (See GLASS PANEL REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(5)  Lower decoration panel (With center display) (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Passenger-side front side trim (With center display) (L.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Glove compartment (With center display) (L.H.D.) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(9)  Dashboard under cover (With center display) (L.H.D.) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(10)  Passenger-side lower panel (With center display) (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)

(11)  Driver-side front side trim (With center display) (R.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(12)  Bonnet release lever (With center display) (R.H.D.) (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(13)  Fuel-filler lid opener lever (With center display) (R.H.D.) (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(14)  Driver-side lower panel (With center display) (R.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)

(15)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(16)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(17)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(18)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(19)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(20)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(21)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(22)  Tonneau cover (With tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)

(23)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(24)  Bass-box (With Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(25)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(26)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(27)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(28)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(29)  Head restraint

(30)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

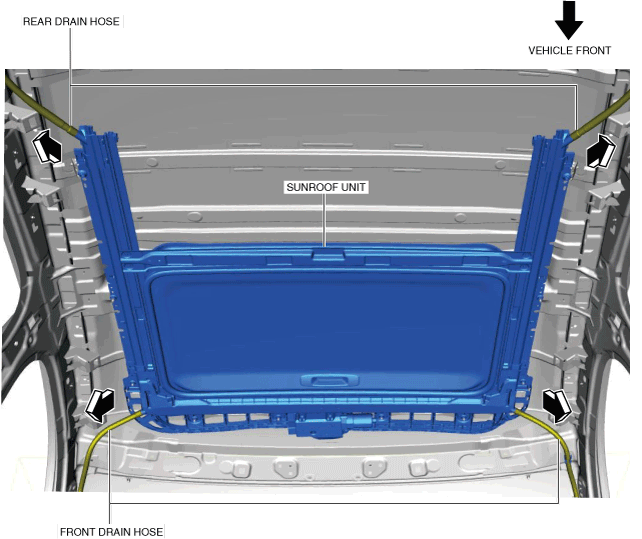

4.  Disconnect the front drain hoses and the rear drain hoses in the directions of the arrows shown in the figure.

ac5uuw00006587

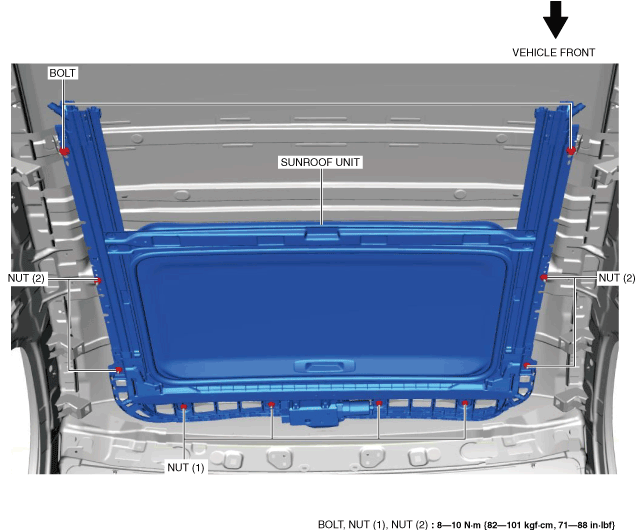

5.  Remove nuts (1).

ac5uuw00006588

6.  Remove the bolts.

7.  Remove nuts (2).

Warning

•  Support the sunroof unit before removing the bolts and nuts and always perform the procedure with at least one other person to prevent the sunroof unit from falling. Otherwise, it may fall and cause injury.

8.  Remove the sunroof unit.

9.  Remove the sunroof unit from the driver-side or passenger-side front door.

10.  Install in the reverse order of removal.
