HEADLINER REMOVAL/INSTALLATION
id091700801600
Preparation Before Servicing
-
Caution
-

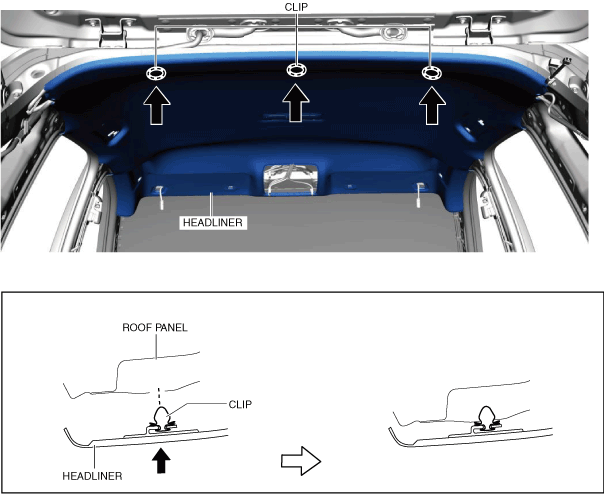

• The location of the headliner shown in the figure is installed to the roof panel using a clip via the surface fastener. If the surface fastener is peeled off or a clip is removed forcibly when removing the headliner, the headliner will be damaged. Disconnect the surface fastener using a string before removing the headliner.

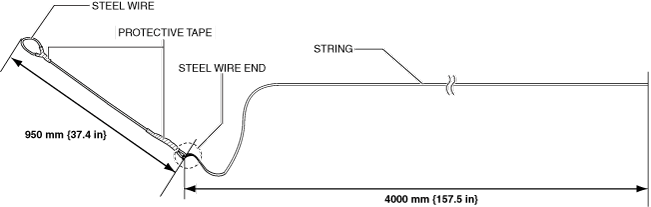

1. Form the steel wire (approx. φ 2 mm {0.08 in}) into the shape shown in the figure and tie a string (approx. φ3 mm {0.1 in}) to the steel wire end.
2. To prevent the steel wire from getting caught on the headliner, wrap the position shown in the figure with protective tape.
REMOVAL
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

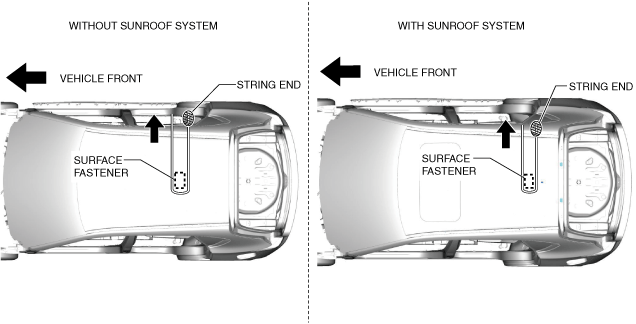

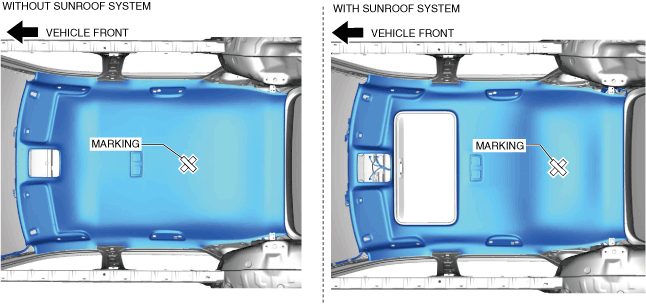

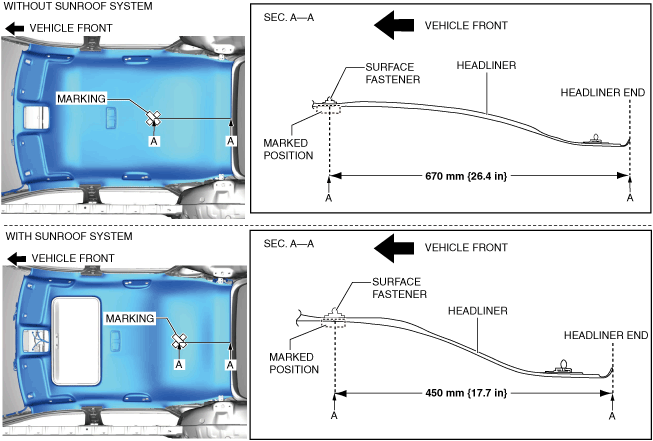

2. Mark the position shown in the figure using tape to verify the position of the surface fastener.
3. Remove the following parts:
- (1) Sunroof seaming welt (With sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (4) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (5) Lower decoration panel (With center display) (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (7) Passenger-side front side trim (With center display) (L.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (8) Glove compartment (With center display) (L.H.D.) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (9) Dashboard under cover (With center display) (L.H.D.) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (10) Passenger-side lower panel (With center display) (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (11) Driver-side front side trim (With center display) (R.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (12) Bonnet release lever (With center display) (R.H.D.) (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (13) Fuel-filler lid opener lever (With center display) (R.H.D.) (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (14) Driver-side lower panel (With center display) (R.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (15) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (16) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (17) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (18) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (19) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (20) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (21) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (22) Tonneau cover (With tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)
-
- (23) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (24) Bass-box (With Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (25) Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)
-
- (26) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (27) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (28) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (29) Head restraint
-
4. Fold the rear seat backs.

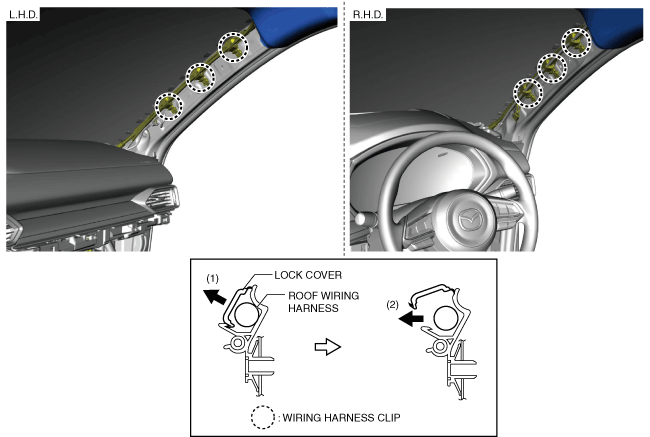

5. Open the lock covers of the wiring harness clips in the direction of arrow (1) shown in the figure and remove the roof wiring harness in the direction of arrow (2).

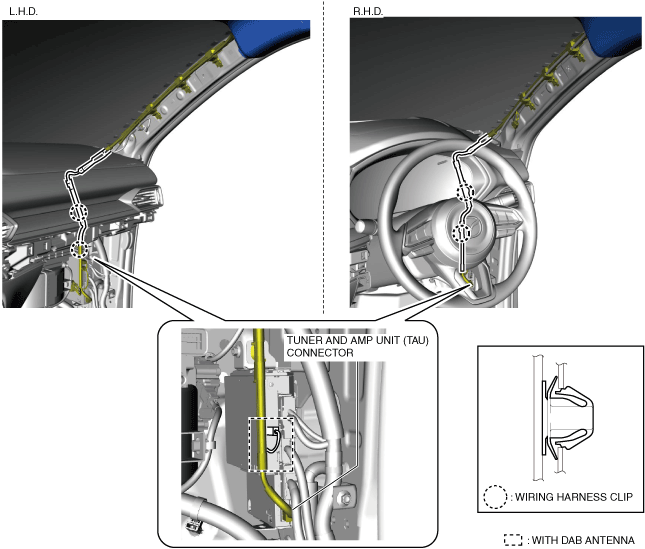

6. Remove the wiring harness clips and disconnect the tuner and amp unit (TAU) connector. (With center display)

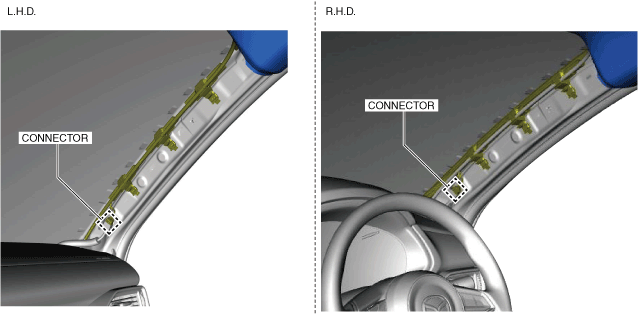

7. Disconnect the connector. (Without center display)

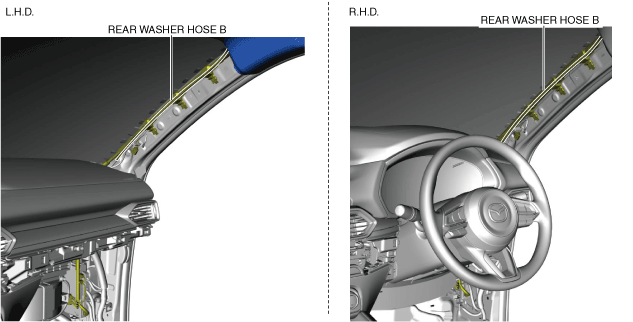

8. Disconnect rear washer hose B.

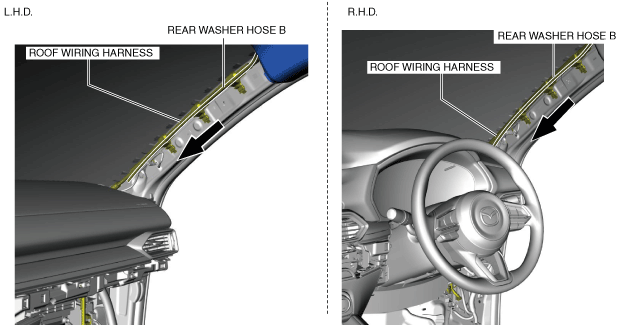

9. Pull the roof wiring harness and rear washer hose B in the direction of the arrow shown in the figure and pull them out.

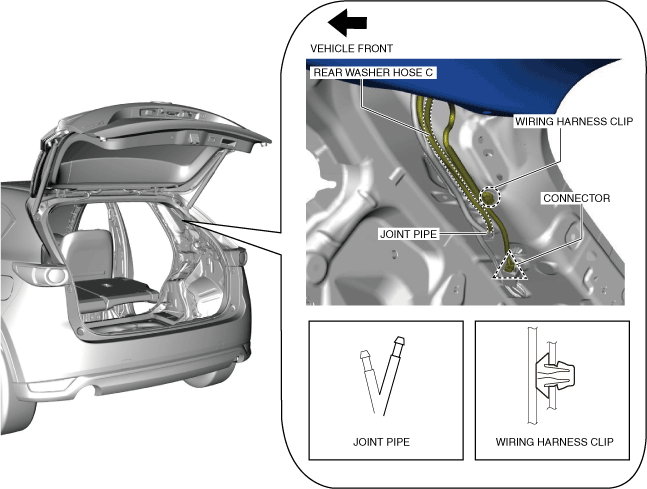

10. Disconnect rear washer hose C from the joint pipe.
11. Remove the wiring harness clip.
12. Disconnect the connector.

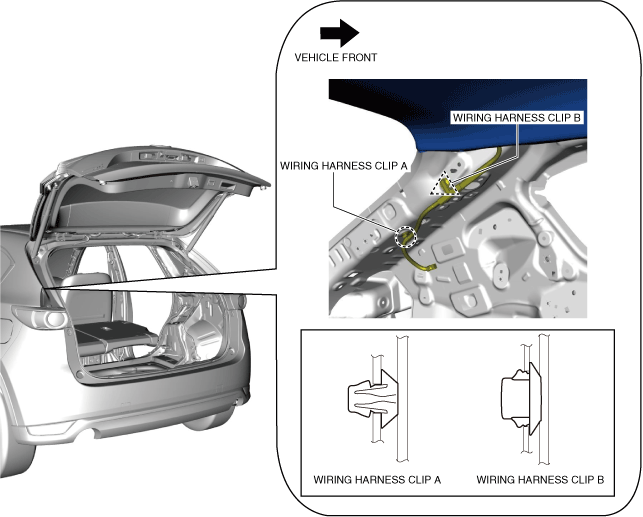

13. Remove wiring harness clips A and B.

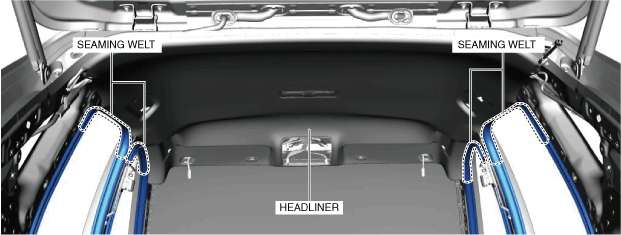

14. Temporarily install the seaming welts shown in the figure to the headliner.
-
Caution
-
• If the clips are detached without temporarily installing the seaming welts, the headliner may fall off and the part may be damaged. Before detaching the clips, temporarily install the seaming welts to prevent the headliner from falling off.

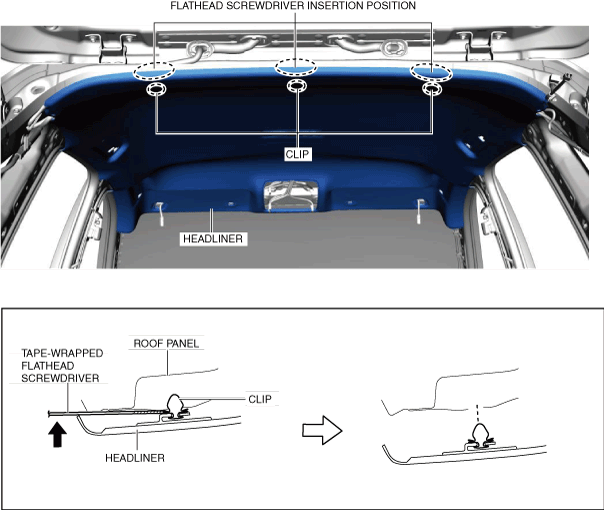

15. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and detach the clips.
16. For vehicles without the sunroof system, hook a string with the surface fastener using the following procedure.

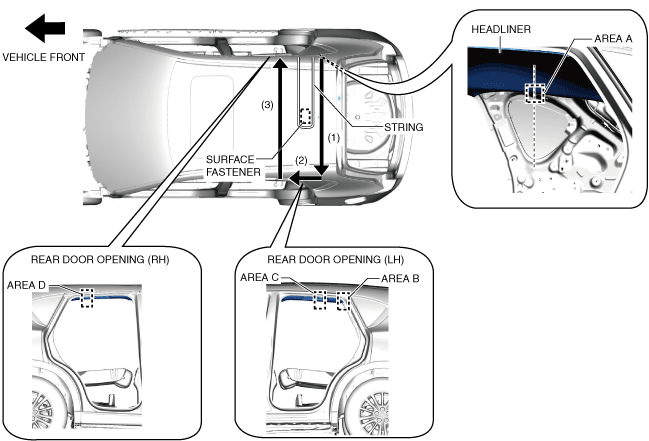

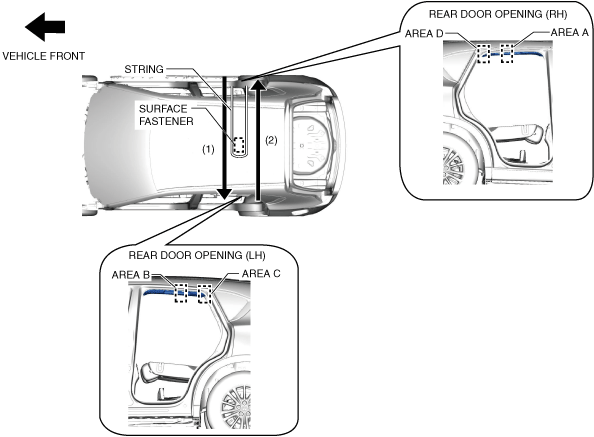

- (1) Insert the steel wire processed for the preparation before servicing and a string between the roof panel and the headliner from area A shown in the figure.
-
- (2) Move the steel wire in the direction of arrow (1) shown in the figure and pull it out of area B shown in the figure.
-
- (3) Insert the steel wire between the roof panel and the headliner from area C shown in the figure.
-
- (4) Move the steel wire in the direction of arrow (2) shown in the figure and pull it out of area D shown in the figure.
-
- (5) Adjust the string position so that the string contacts the surface fastener.
-
17. For vehicles with the sunroof system, hook a string to the surface fastener using the following procedure.
- (1) Insert the steel wire processed for the preparation before servicing and a string between the roof panel and the headliner from area A shown in the figure.
-
- (2) Move the steel wire in the order of arrows (1) and (2) shown in the figure and pull it out of area B shown in the figure.
-
- (3) Insert the steel wire between the roof panel and the headliner from area C shown in the figure.
-
- (4) Move the steel wire in the direction of arrow (3) shown in the figure and pull it out of area D shown in the figure.
-
- (5) Adjust the string position so that the string contacts the surface fastener.
-

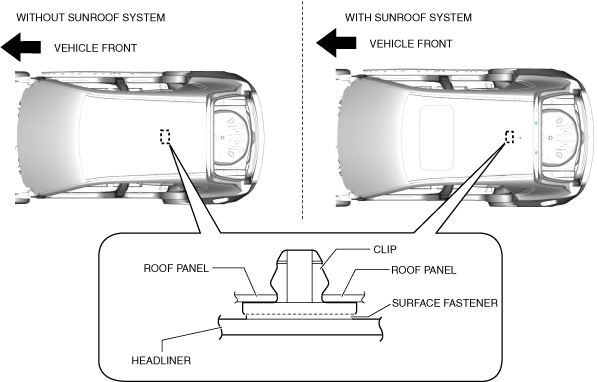

18. Pull the string in the direction of the arrow with the string end shown in the figure held and disconnect the surface fastener.

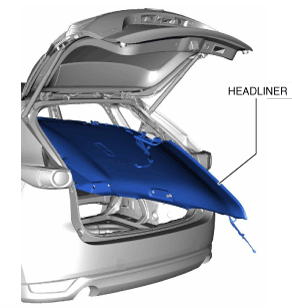

19. Partially peel back the seaming welts and take the headliner out from the opened liftgate.
INSTALLATION

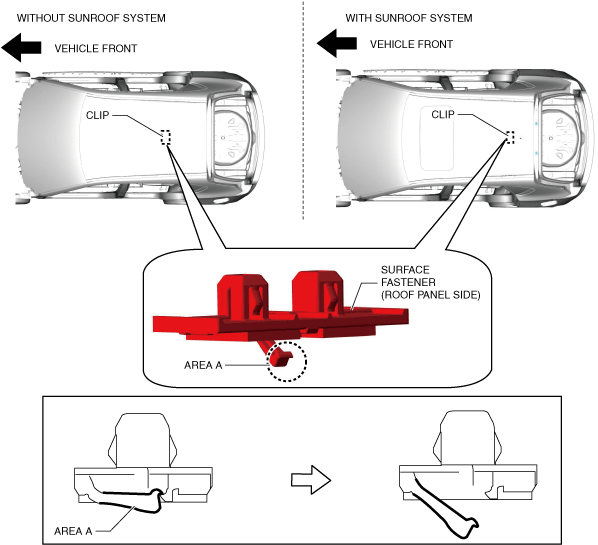

1. Pull out area A of the clip for the surface fastener (roof panel side) shown in the figure using a flathead screwdriver.
-
Note
-
• To avoid adhering the surface fastener to the headliner before installing the headliner, pull out area A of the clip.
2. Insert the headliner from the liftgate opening.
3. Press the headliner in the direction of the arrows shown in the figure and detach the clips.
4. Install the seaming welts shown in the figure.
5. Install wiring harness clips A and B.
6. Connect the connector.
7. Install the wiring harness clip.
8. Connect rear washer hose C with the joint pipe.

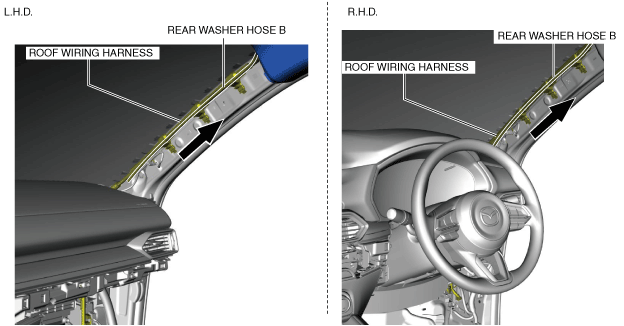

9. Insert the roof wiring harness and rear washer hose B in the direction of the arrow shown in the figure.
10. Connect rear washer hose B.
11. Install the wiring harness clips and connect the tuner and amp unit (TAU) connector. (With center display)
12. Connect the connector. (Without center display)
13. Install the roof wiring harness in the direction of arrow (1) shown in the figure and close the lock covers of the wiring harness clips in the direction of arrow (2).
14. Install the following parts:
- (1) Head restraint
-
- (2) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (4) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (5) Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)
-
- (6) Bass-box (With Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (7) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (8) Tonneau cover (With Tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)
-
- (9) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (10) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (11) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (12) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (13) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (14) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (15) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (16) Driver-side lower panel (With center display) (R.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (17) Fuel-filler lid opener lever (With center display) (R.H.D.) (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (18) Bonnet release lever (With center display) (R.H.D.) (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (19) Driver-side front side trim (With center display) (R.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (20) Passenger-side lower panel (With center display) (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (21) Dashboard under cover (With center display) (L.H.D.) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (22) Glove compartment (With center display) (L.H.D.) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (23) Passenger-side front side trim (With center display) (L.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (24) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (25) Lower decoration panel (With center display) (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (26) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (27) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (28) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (29) Sunroof seaming welt (With sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
15. Press the marked location by hand and press fit the surface fastener.
16. Remove the marking.
17. Move the rear seat backs to their upright positions.
18. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
