FLOOR COVERING REMOVAL/INSTALLATION
id091700803000
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (2) Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)
-
- (3) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)
-
- (4) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].)
-
- (5) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (6) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (7) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (10) MAZDA ERA-GLONASS control module (With MAZDA ERA-GLONASS) (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.)
-
- (11) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (12) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (13) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (14) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (15) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (16) Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
-
- (17) Lower anchor installation cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (18) Lower anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (19) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
- (20) Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
-
- (21) Rear vent duct No.2 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)
-
- (22) Rear vent duct No.1 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)
-
- (23) Shift lever component (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].)
-
- (24) Selector lever component (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (25) Audio amplifier (With Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
-

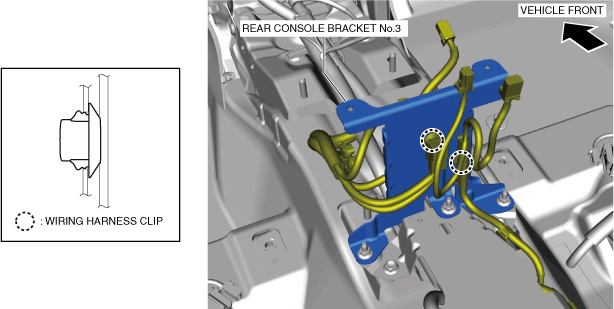

3. Remove the wiring harness clips.

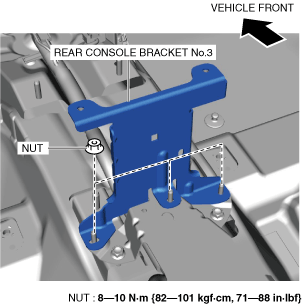

4. Remove the nuts.
5. Remove rear console bracket No.3.
6. Remove the following parts:
- (1) Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)
-
- (2) Electric parking brake control module bracket (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)
-
- (3) SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
-

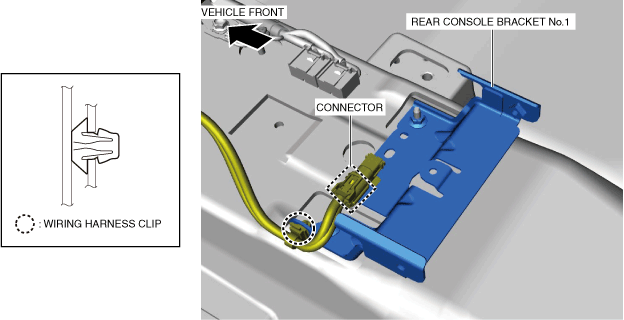

7. Remove the wiring harness clip.
8. Disconnect the connector.
9. Remove the nuts.
10. Remove rear console bracket No.1.
11. Remove the wiring harness clips.
12. Remove the fasteners.
13. Fold the floor covering and remove it from the door opening.
14. Install in the reverse order of removal. (See Floor Covering Installation Note.)
Floor Covering Installation Note
-
Caution
-

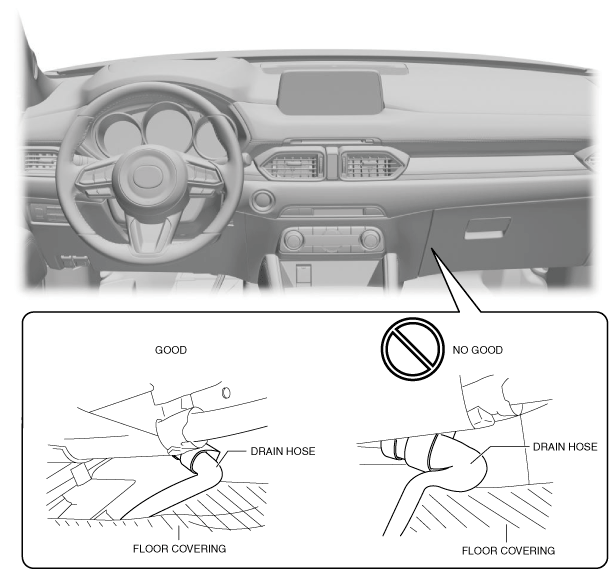

• When installing the floor covering, the floor covering may press the A/C unit drain hose and deform it. When installing the floor covering, align the floor covering to the body to prevent deforming the A/C unit drain hose.
1. Place the floor covering with it aligned to the body.
2. Before installing the side wall, verify that the A/C unit drain hose is not deformed.

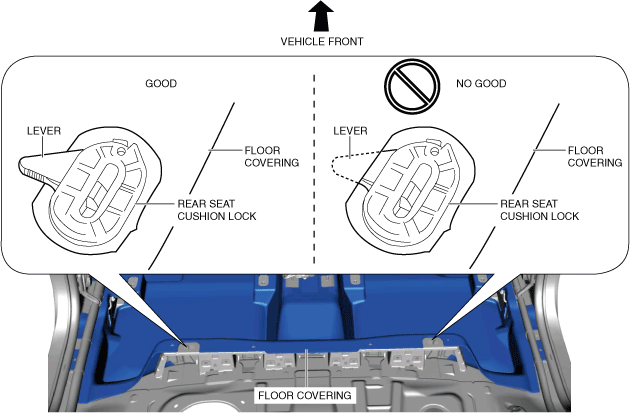

• If the rear seat cushion lock lever is covered by the floor mat, the rear seat cushion lock cannot be released. When installing the floor covering, do not cover the rear seat cushion lock lever with the floor covering.
