LIGHTING SYSTEMS LOCATION INDEX

id091800800100

Exterior

ac5wzw00008706

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See RUNNING LIGHT BULB REMOVAL/INSTALLATION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
2	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.)
3	Auto light sensor (with auto light system) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.)
4	Front fog light (with front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT INSPECTION [LED TYPE].) (See FRONT FOG LIGHT AIMING.)
5	Liftgate light (See LIFTGATE LIGHT REMOVAL/INSTALLATION.) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See TAILLIGHT BULB REMOVAL/INSTALLATION.)
6	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT SHORT-CORD INSPECTION.) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See TAILLIGHT BULB REMOVAL/INSTALLATION.)
7	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
8	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
9	Rear fog light (with rear fog light) (R.H.D.) (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)
10	Rear fog light (with rear fog light) (L.H.D.) (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)

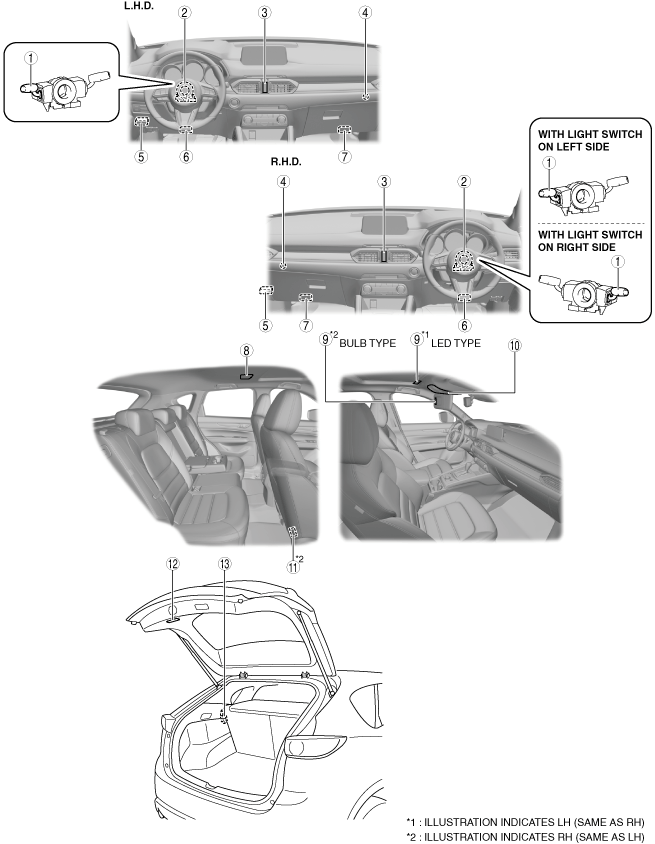

Interior

ac5uuw00005412

1	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FRONT FOG LIGHT SWITCH INSPECTION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
2	Steering angle sensor (with smart city brake support (SCBS), adaptive front lighting system (AFS), or adaptive LED headlights) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.)
3	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
4	Glove compartment light (with glove compartment light) (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
5	Auto leveling control module (without adaptive front lighting system (AFS) and adaptive LED headlights) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
6	Driver-side Foot light (with foot light) (See FOOT LIGHT BULB REMOVAL/INSTALLATION.) (See FOOT LIGHT REMOVAL/INSTALLATION.)
7	Passenger-side Foot light (with foot light) (See FOOT LIGHT BULB REMOVAL/INSTALLATION.) (See FOOT LIGHT REMOVAL/INSTALLATION.)
8	Rear map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See REAR MAP LIGHT REMOVAL/INSTALLATION.) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION.)
9	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
10	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT INSPECTION.)
11	Rear foot light (with foot light) (See FOOT LIGHT BULB REMOVAL/INSTALLATION.) (See FOOT LIGHT REMOVAL/INSTALLATION.)
12	Cargo compartment light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
13	Brake light unit (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION.) (See BRAKE LIGHT UNIT INSPECTION.)
