ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION

id092000812300


Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system only) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(4)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(7)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(8)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(9)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(10)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(11)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(12)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(13)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(14)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(15)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(16)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(17)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(18)  Tonneau cover (with tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)
(19)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(20)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(21)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)
(22)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(23)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(24)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(25)  Head restraint
(26)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Peel off the tape and remove antenna feeder No.1.

Vehicles without sunroof

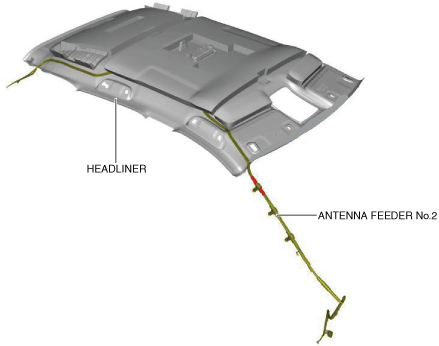

ac5uuw00006624

Vehicles with sunroof

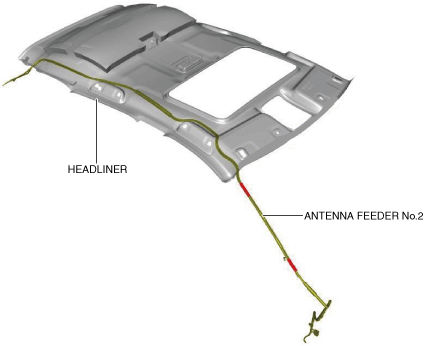

ac5uuw00006625


Installation

1.  Align antenna feeder No.1 with the dimension shown in the figure, adhere tape to the tape adhering position of the headliner, and install antenna feeder No.1.

Vehicles without sunroof

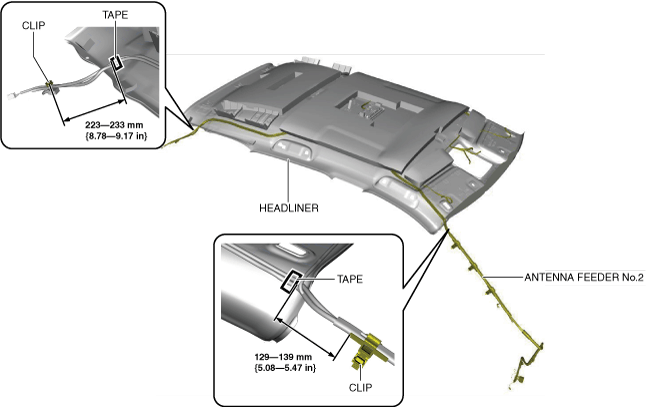

ac5wzw00013231

Vehicles with sunroof

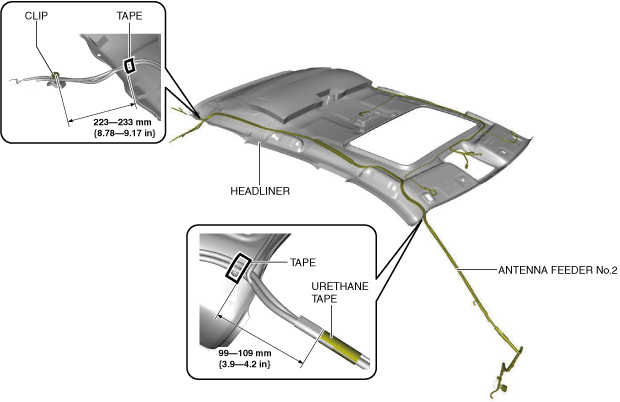

ac5wzw00013232

2.  Install the following parts:

(1)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)
(2)  Head restraint
(3)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(4)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(6)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)
(7)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(8)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(9)  Tonneau cover (with tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)
(10)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(12)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(13)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(14)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(15)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(16)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(17)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(18)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(19)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(20)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(21)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(22)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(23)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(24)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(25)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(26)  Sunroof seaming welt (with sunroof system only) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

3.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
