INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200010200

Interior

ac5wzw00009682

1	Parking sensor switch (With parking sensor system) (See PARKING SENSOR SWITCH REMOVAL/INSTALLATION.) (See PARKING SENSOR SWITCH INSPECTION.)
2	Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
3	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER OPERATION RECORD.) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
4	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.)
5	Parking assist unit (ultra sonic) (With parking sensor system) (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT (ULTRASONIC) INSPECTION.) (See PARKING SENSOR SYSTEM OPERATION SWITCHING PROCEDURE.)
6	TEL antenna (with MAZDA ERA-GLONASS) (See TEL ANTENNA REMOVAL/INSTALLATION.)
7	MAZDA ERA-GLONASS speaker (with MAZDA ERA-GLONASS) (See MAZDA ERA-GLONASS SPEAKER REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS SPEAKER INSPECTION.)
8	MAZDA ERA-GLONASS switch (with MAZDA ERA-GLONASS) (See MAZDA ERA-GLONASS SWITCH REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS SWITCH INSPECTION.)
9	MAZDA ERA-GLONASS control module (with MAZDA ERA-GLONASS) (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS CONTROL MODULE INSPECTION.) (See MAZDA ERA-GLONASS CONTROL MODULE BATTERY REMOVAL/INSTALLATION,) (See MAZDA ERA-GLONASS CONTROL MODULE CONFIGURATION.) (See MAZDA ERA-GLONASS CONTROL MODULE FINALIZATION PROCEDURE.) (See MAZDA ERA-GLONASS OPERATION RECORD.)
10	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].) (SeeFUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].) (See FUEL GAUGE SENDER UNIT INSPECTION [2WD].) (See FUEL GAUGE SENDER UNIT INSPECTION [4WD].)
11	Parking sensor buzzer (with parking sensor system) (See REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See REAR PARKING SENSOR BUZZER INSPECTION.)

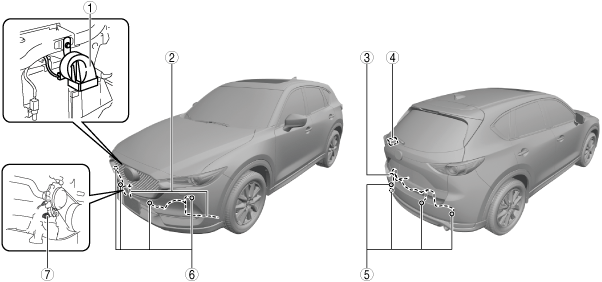

Exterior

ac5wzw00009683

1	Horn (See HORN REMOVAL/INSTALLATION.) (See HORN INSPECTION.)
2	Front ultrasonic sensor short-cord (With front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
3	Rear ultrasonic sensor short-cord (With parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
4	Rear parking sensor buzzer (With parking sensor system) (See REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See REAR PARKING SENSOR BUZZER INSPECTION.)
5	Rear ultrasonic sensor (With parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
6	Front ultrasonic sensor (With front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
7	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION.) (See OIL PRESSURE SWITCH INSPECTION.)
