FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION

id091400510800

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front seat (RH) (See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Lower anchor installation bolts on the front seat belt (RH) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(7)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(8)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(9)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(10)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(11)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)

(12)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(13)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(14)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(15)  Trunk insulator (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(16)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(17)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

3.  Remove the fuel-filler lid opener cable from clip A.

ac8wzw00000034

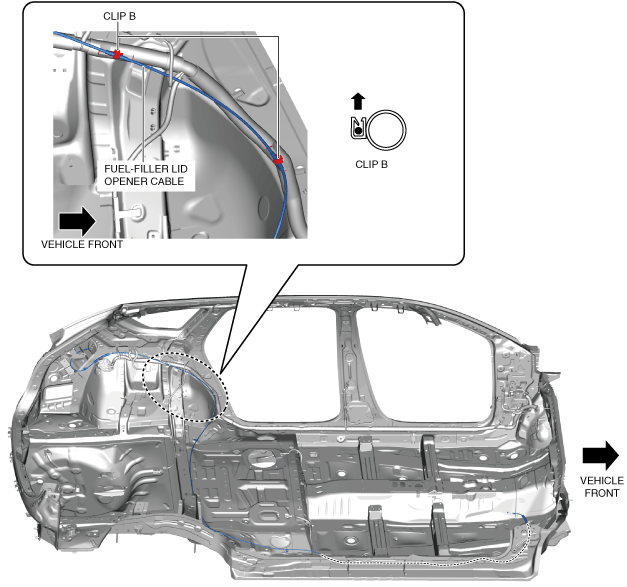

4.  Remove the fuel-filler lid opener cable from clip B.

ac8wzw00000035

5.  Peel back the floor mat and remove the fuel-filler lid opener cable from the clips C,D and E shown in the figure.

ac8wzw00000036

6.  Peel back the floor mat and remove the fuel-filler lid opener cable from the clips F,G and H shown in the figure.

ac8wzw00000037

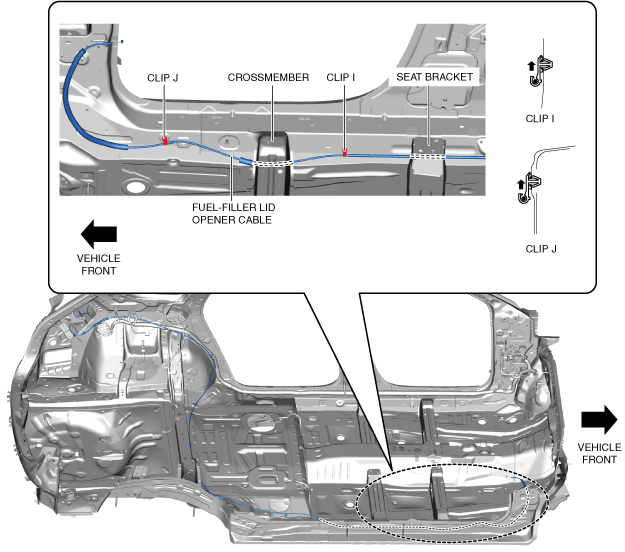

7.  Peel back the floor mat and remove the fuel-filler lid opener cable from the clips I and J shown in the figure.

ac8wzw00000038

8.  Pull the fuel-filler lid opener cable from the crossmember and the seat bracket.

9.  Install in the reverse order of removal.

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front seat (LH) (See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Lower anchor installation bolts on the front seat belt (LH) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(7)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(8)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(9)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(10)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(11)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)

(12)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(13)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(14)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(15)  Trunk insulator (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(16)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(17)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

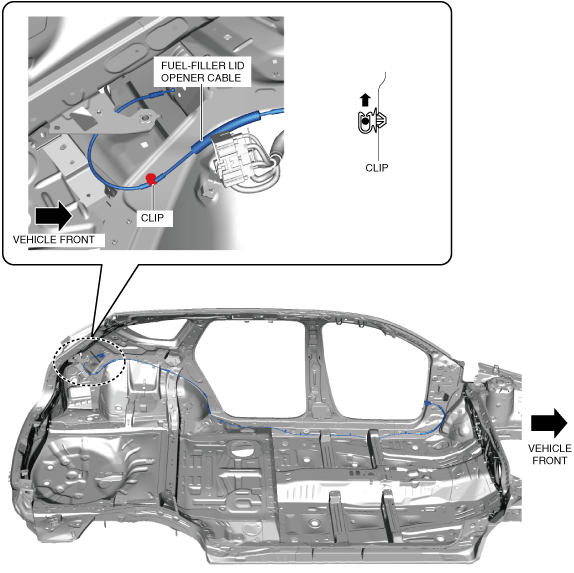

3.  Remove the fuel-filler lid opener cable from the clip.

ac8wzw00003457

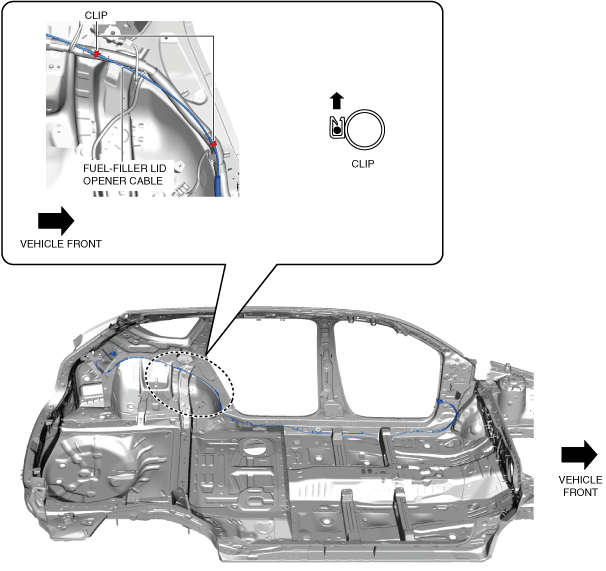

4.  Remove the fuel-filler lid opener cable from the clips.

ac8wzw00003458

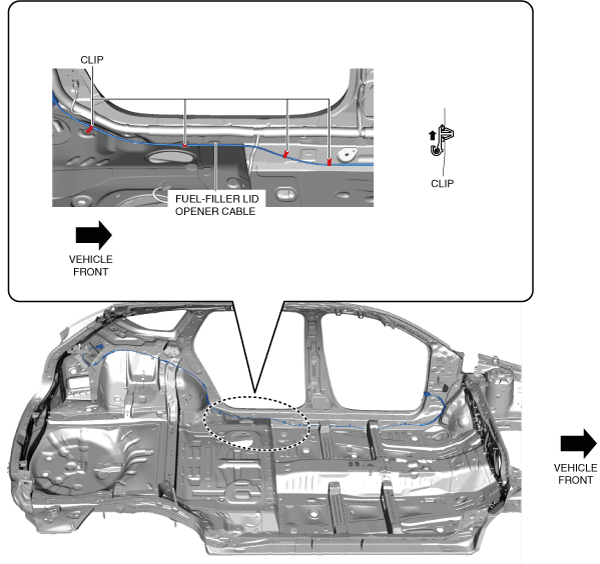

5.  Peel back the floor mat and remove the fuel-filler lid opener cable from the clips shown in the figure.

ac8wzw00003459

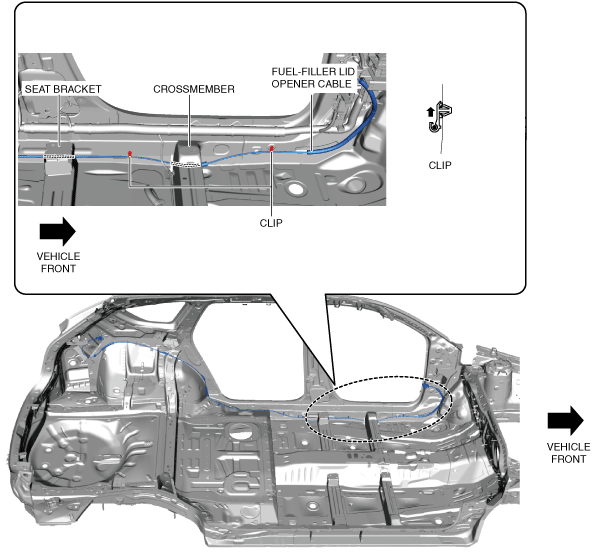

6.  Peel back the floor mat and remove the fuel-filler lid opener cable from the clips shown in the figure.

ac8wzw00003460

7.  Pull the fuel-filler lid opener cable from the crossmember and the seat bracket.

8.  Install in the reverse order of removal.
