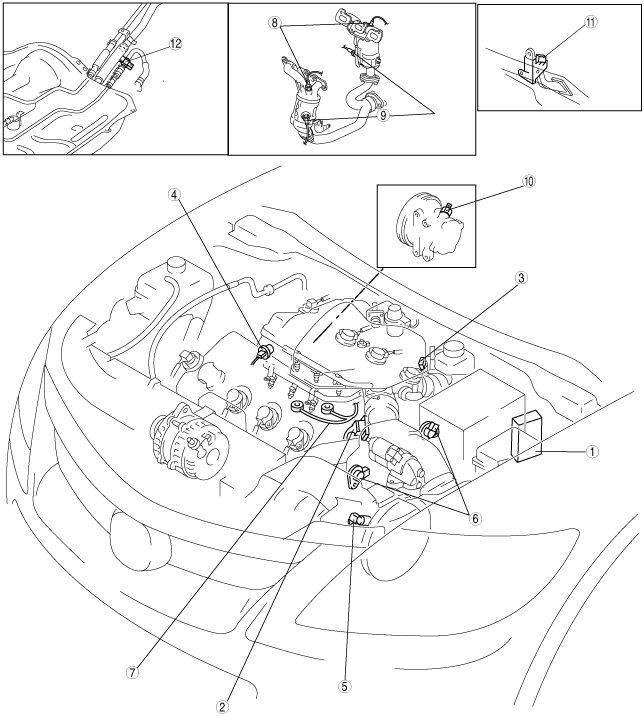

CONTROL SYSTEM LOCATION INDEX [MZI-3.7]

id0140c3804100

ac9wzw00000131

1	PCM (See PCM REMOVAL/INSTALLATION [MZI-3.7].) (See PCM INSPECTION [MZI-3.7].) (See PCM CONFIGURATION [MZI-3.7].)
2	MAF/IAT sensor (See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [MZI-3.7].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [MZI-3.7].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZI-3.7].)
3	TP sensor (See THROTTLE POSITION (TP) SENSOR INSPECTION [MZI-3.7].)
4	CHT sensor (See CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL/INSTALLATION [MZI-3.7].) (See CYLINDER HEAD TEMPERATURE (CHT) SENSOR INSPECTION [MZI-3.7].)
5	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZI-3.7].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [MZI-3.7].)
6	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZI-3.7].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [MZI-3.7].)
7	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [MZI-3.7].) (See KNOCK SENSOR (KS) INSPECTION [MZI-3.7].)
8	Front HO2S (See FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7].) (See FRONT HEATED OXYGEN SENSOR (HO2S) INSPECTION [MZI-3.7].)
9	Rear HO2S (See REAR HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7].) (See REAR HEATED OXYGEN SENSOR (HO2S) INSPECTION [MZI-3.7].)
10	PSP switch (See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION [MZI-3.7].)
11	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZI-3.7].)
12	Fuel tank pressure sensor (See FUEL TANK PRESSURE SENSOR INSPECTION [MZI-3.7].)
