REAR DOOR HINGE REMOVAL/INSTALLATION

id091100043400

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear door (See REAR DOOR REMOVAL/INSTALLATION.)

(2)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(7)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(8)  Tire house trim(See TIRE HOUSE TRIM REMOVAL/INSTALLATION [(E)].)

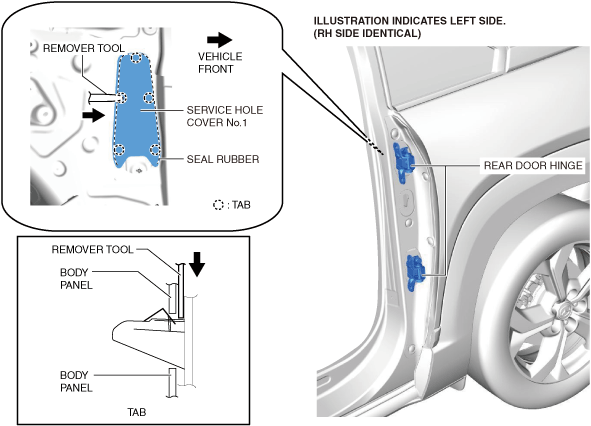

3.  Insert the remover tool into the positions shown in the figure.

a30zzw00000530

4.  Push the tab of the service hole cover No.1 in the direction of the arrow shown in the figure to detach service hole cover No. 1 from the body panel.

5.  Remove service hole cover No.1.

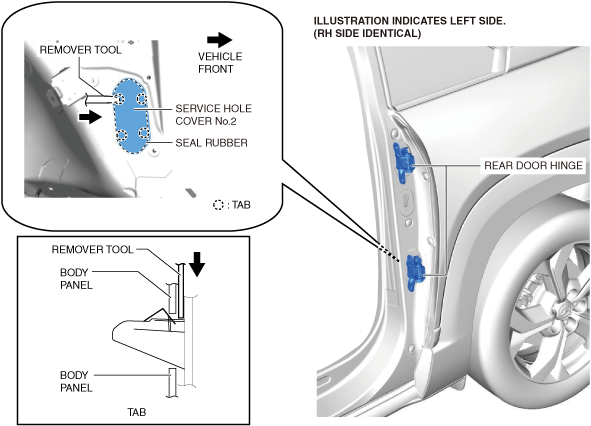

6.  Insert the remover tool into the positions shown in the figure.

a30zzw00000531

7.  Push the tab of the service hole cover No.2 in the direction of the arrow shown in the figure to detach service hole cover No.2 from the body panel.

8.  Remove service hole cover No.2.

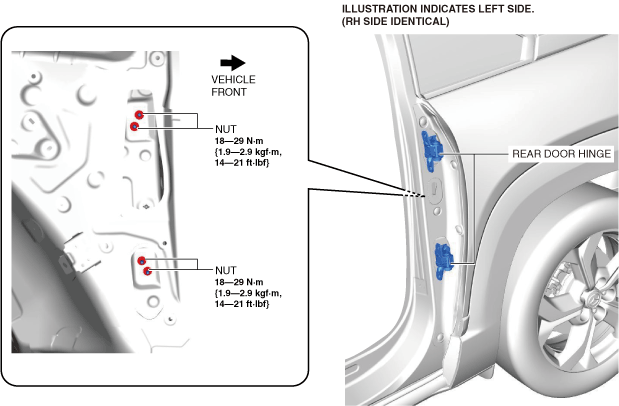

9.  Remove the nuts.

a30zzw00000532

10.  Remove the rear door hinge.

11.  Install in the reverse order of removal.

12.  Adjust the rear door. (See DOOR ADJUSTMENT.)
