DTC B14F4:16 [VEHICLE CONTROL MODULE]

id1502c5050200

Outline

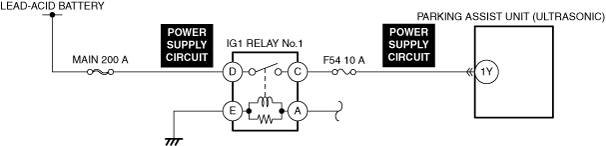

System malfunction location

Parking assist unit (ultrasonic) low power voltage input

Detection condition

•  The vehicle control module (VCM) detects that the parking assist unit (ultrasonic) power supply circuit voltage was 8 V or less for 11 s.

Fail-safe

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

Possible cause

•  DTCs are stored in the following modules.

―  PCM

―  DC-DC converter

•  Lead-acid battery malfunction

•  Parking assist unit (ultrasonic) connector or terminal malfunction

•  IG1 relay No.1 malfunction

•  Short to ground or open circuit in IG1 relay No.1 power supply circuit

•  Short to ground in parking assist unit (ultrasonic) power supply circuit

•  Open circuit in parking assist unit (ultrasonic) power supply circuit

•  Parking assist unit (ultrasonic) malfunction

•  Vehicle control module (VCM) malfunction (built into body control module (BCM))

System malfunction location	Parking assist unit (ultrasonic) low power voltage input
Detection condition	• The vehicle control module (VCM) detects that the parking assist unit (ultrasonic) power supply circuit voltage was 8 V or less for 11 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	• DTCs are stored in the following modules. ― PCM ― DC-DC converter • Lead-acid battery malfunction • Parking assist unit (ultrasonic) connector or terminal malfunction • IG1 relay No.1 malfunction • Short to ground or open circuit in IG1 relay No.1 power supply circuit • Short to ground in parking assist unit (ultrasonic) power supply circuit • Open circuit in parking assist unit (ultrasonic) power supply circuit • Parking assist unit (ultrasonic) malfunction • Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM).
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

2

INSPECT PARKING ASSIST UNIT (ULTRASONIC) FOR MALFUNCTION

•  Perform the DTC inspection for the parking assist unit (ultrasonic).
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PARKING ASSIST UNIT (ULTRASONIC) (E)].)

No

Go to the next step.

3

VERIFY DTCs

•  Perform the DTC inspection for the following modules.
(See DTC INSPECTION.)

―  PCM

―  DC-DC converter

•  Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (e-SKYACTIV)].)

(See DTC TABLE [DC-DC CONVERTER (e-SKYACTIV)].)

No

Go to the next step.

4

INSPECT PARKING ASSIST UNIT (ULTRASONIC) POWER SUPPLY VOLTAGE

•  Reconnect all the disconnected connectors.

•  Connect the negative lead-acid battery terminal.
(See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Measure the voltage at parking assist unit (ultrasonic) terminal 1Y.

•  Is the voltage 8 V or less?

Yes

Go to the next step.

No

Go to Step 11.

5

INSPECT LEAD-ACID BATTERY FOR MALFUNCTION

•  Inspect the applicable part.
(See LEAD-ACID BATTERY INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See LEAD-ACID BATTERY RECHARGING.)

(See LEAD-ACID BATTERY REMOVAL/INSTALLATION.)

6

INSPECT PARKING ASSIST UNIT (ULTRASONIC) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT IG1 RELAY No.1 FOR MALFUNCTION

•  Inspect the applicable part.
(See RELAY INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See RELAY LOCATION [(E)].)

8

INSPECT IG1 RELAY No.1 POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the applicable circuit for a short to ground and an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning harness or fuse and perform the repair completion verification.

9

INSPECT PARKING ASSIST UNIT (ULTRASONIC) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning harness or fuse and perform the repair completion verification.

10

INSPECT PARKING ASSIST UNIT (ULTRASONIC) POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning harness or fuse and perform the repair completion verification.

11

INSPECT PARKING ASSIST UNIT (ULTRASONIC) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Switch the main power ON (READY off or on) and wait for 11 s or more.

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].)

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

If the CAN communication is normal, replace the parking assist unit (ultrasonic) and perform the repair completion verification.

(See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.)

No

Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS].

(See TROUBLESHOOTING PROCEDURE [(E)].)

If DTC is displayed

•  Repeat the diagnosis from Step 1.

If DTC is not displayed

•  Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Switch the main power ON (READY off or on) and wait for 11 s or more.

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].)

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION • Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM). (See DTC INSPECTION.) • Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [VEHICLE CONTROL MODULE (E)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
1		No	Go to the next step.
2	INSPECT PARKING ASSIST UNIT (ULTRASONIC) FOR MALFUNCTION • Perform the DTC inspection for the parking assist unit (ultrasonic). (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PARKING ASSIST UNIT (ULTRASONIC) (E)].)
2		No	Go to the next step.
3	VERIFY DTCs • Perform the DTC inspection for the following modules. (See DTC INSPECTION.) ― PCM ― DC-DC converter • Are any DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (e-SKYACTIV)].) (See DTC TABLE [DC-DC CONVERTER (e-SKYACTIV)].)
3		No	Go to the next step.
4	INSPECT PARKING ASSIST UNIT (ULTRASONIC) POWER SUPPLY VOLTAGE • Reconnect all the disconnected connectors. • Connect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Measure the voltage at parking assist unit (ultrasonic) terminal 1Y. • Is the voltage 8 V or less?	Yes	Go to the next step.
4		No	Go to Step 11.
5	INSPECT LEAD-ACID BATTERY FOR MALFUNCTION • Inspect the applicable part. (See LEAD-ACID BATTERY INSPECTION.) • Is the part normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See LEAD-ACID BATTERY RECHARGING.) (See LEAD-ACID BATTERY REMOVAL/INSTALLATION.)
6	INSPECT PARKING ASSIST UNIT (ULTRASONIC) CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT IG1 RELAY No.1 FOR MALFUNCTION • Inspect the applicable part. (See RELAY INSPECTION.) • Is the part normal?	Yes	Go to the next step.
7		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See RELAY LOCATION [(E)].)
8	INSPECT IG1 RELAY No.1 POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Inspect the applicable circuit for a short to ground and an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
8		No	Repair or replace the malfunctioning harness or fuse and perform the repair completion verification.
9	INSPECT PARKING ASSIST UNIT (ULTRASONIC) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
9		No	Repair or replace the malfunctioning harness or fuse and perform the repair completion verification.
10	INSPECT PARKING ASSIST UNIT (ULTRASONIC) POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
10		No	Repair or replace the malfunctioning harness or fuse and perform the repair completion verification.
11	INSPECT PARKING ASSIST UNIT (ULTRASONIC) FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Switch the main power ON (READY off or on) and wait for 11 s or more. • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, replace the parking assist unit (ultrasonic) and perform the repair completion verification. (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.)
11		No	Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS]. (See TROUBLESHOOTING PROCEDURE [(E)].) If DTC is displayed • Repeat the diagnosis from Step 1. If DTC is not displayed • Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Switch the main power ON (READY off or on) and wait for 11 s or more. • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
