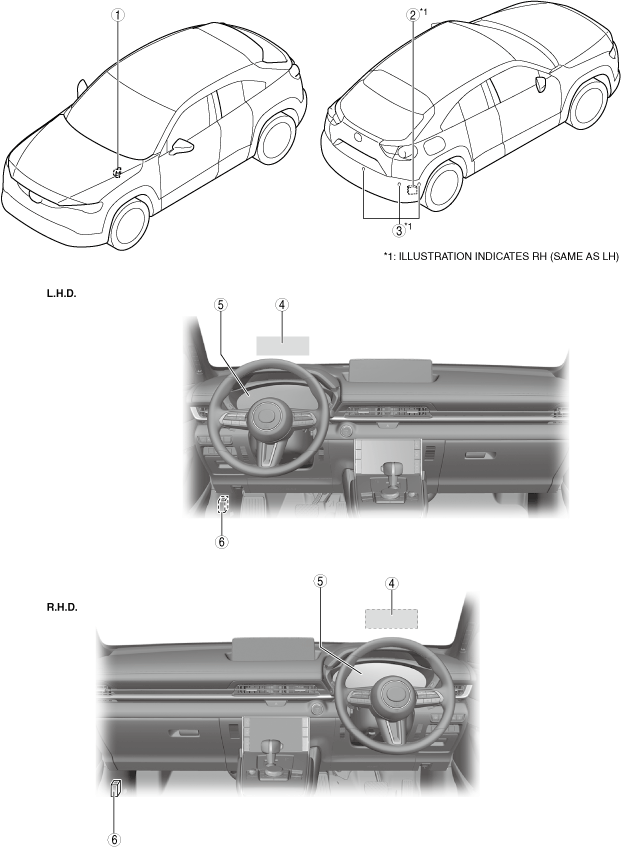

SMART BRAKE SUPPORT (SBS) [REARWARD DETECTION] LOCATION INDEX

id152000100400

a30zzw00002681

1	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
2	Rear side radar sensor (See REAR SIDE RADAR SENSOR REMOVAL/INSTALLATION.) (See REAR SIDE RADAR SENSOR INSPECTION.) (See REAR SIDE RADAR SENSOR AIMING.)
3	Rear ultrasonic sensor (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION [(E)].) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION [(E)].) (See REAR ULTRASONIC SENSOR INSPECTION.)
4	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(E)].) (See ACTIVE DRIVING DISPLAY INSPECTION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.)
5	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)].) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
6	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION [(E)].) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING.)
