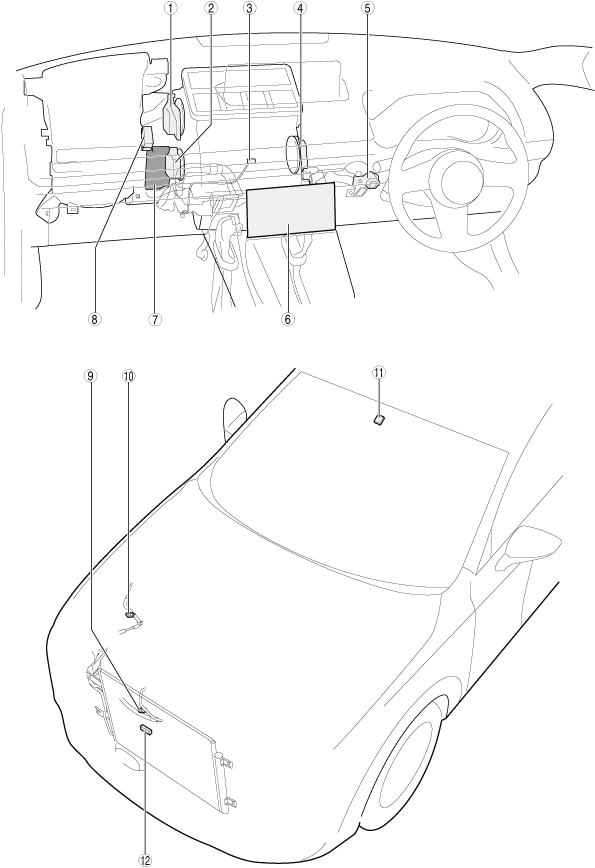

HVAC CONTROL SYSTEM LOCATION INDEX

id074000703100

a30jjw00001981

1	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL.) (See AIRFLOW MODE ACTUATOR INSTALLATION.) (See AIRFLOW MODE ACTUATOR INSPECTION.)
2	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL.) (See AIR MIX ACTUATOR INSTALLATION.) (See AIR MIX ACTUATOR INSPECTION.)
3	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
4	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL.) (See AIR MIX ACTUATOR INSTALLATION.) (See AIR MIX ACTUATOR INSPECTION.)
5	Passenger compartment temperature sensor (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION.)
6	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See CLIMATE CONTROL UNIT INSPECTION.)
7	Dash-electrical supply unit (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION.) (See CLIMATE CONTROL UNIT INSPECTION.)
8	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
9	Refrigerant pressure sensor No.2 (See REFRIGERANT PRESSURE SENSOR No.2 REMOVAL/INSTALLATION.) (See REFRIGERANT PRESSURE SENSOR No.2 INSPECTION.)
10	Refrigerant pressure sensor No.1 (See REFRIGERANT PRESSURE SENSOR No.1 REMOVAL/INSTALLATION.) (See REFRIGERANT PRESSURE SENSOR No.1 INSPECTION.)
11	Solar radiation sensor/humidity sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.) (See SOLAR RADIATION SENSOR INSPECTION.) (See HUMIDITY SENSOR REMOVAL/INSTALLATION.) (See HUMIDITY SENSOR INSPECTION.)
12	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See AMBIENT TEMPERATURE SENSOR INSPECTION.)
