EXTERIOR TRIM LOCATION INDEX

id091600044100

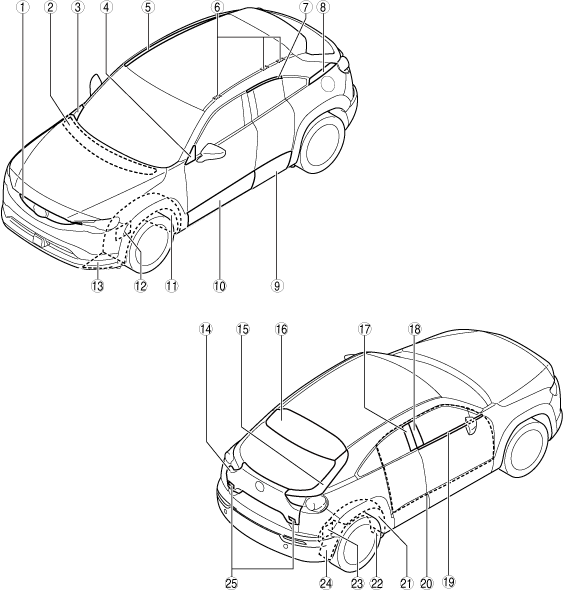

a30jjw00002506

1	Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION.) (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY.)
2	Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
3	Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)
4	Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)
5	Roof molding (See ROOF MOLDING REMOVAL.) (See ROOF MOLDING INSTALLATION.)
6	Roof carrier bracket (See ROOF CARRIER BRACKET REMOVAL/INSTALLATION.)
7	Rear sash molding (See REAR SASH MOLDING REMOVAL/INSTALLATION.)
8	Pillar garnish (See PILLAR GARNISH REMOVAL/INSTALLATION.)
9	Rear side garnish (See SIDE GARNISH REMOVAL/INSTALLATION.)
10	Front side garnish (See SIDE GARNISH REMOVAL/INSTALLATION.)
11	Front mudguard (See MUDGUARD REMOVAL/INSTALLATION.)
12	Front splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
13	Front deflector (See DEFLECTOR REMOVAL/INSTALLATION.)
14	Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION.)
15	Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION.)
16	Rear spoiler (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)
17	Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)
18	Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)
19	Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)
20	Cabin side weatherstrip (See CABIN SIDE WEATHERSTRIP INSTALLATION.)
21	Rear mudguard (See MUDGUARD REMOVAL/INSTALLATION.)
22	Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)
23	Extractor chamber (See EXTRACTOR CHAMBER REMOVAL/INSTALLATION.)
24	Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
25	Emblem (See EMBLEM INSTALLATION.)

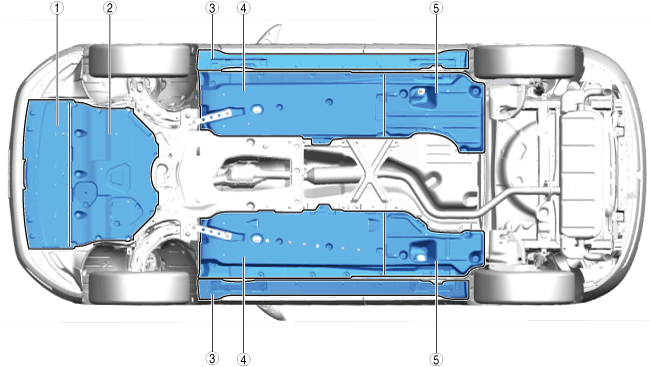

a30jjw00002507

1	Front under cover No.1 (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
2	Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
3	Side step molding (See SIDE STEP MOLDING REMOVAL.) (See SIDE STEP MOLDING INSTALLATION.)
4	Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
5	Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
