FLOOR COVERING REMOVAL/INSTALLATION

id091700052200

Front Floor Covering

Warning

•  Handling the SAS control module improperly may cause the air bag or pre-tensioner seat belt to activate (deploy) unexpectedly, which may cause an injury. Read the SRS air bag system service warnings and cautions before handling the SAS control module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Remove the select lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Remove the front seat installation bolts. (With power seat system) (See FRONT SEAT REMOVAL/INSTALLATION.)

3.  Perform the following procedure. (Without seat warmer system)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Perform the following procedure. (With seat warmer system)

(1)  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

5.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

6.  Remove the following parts:

(1)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(2)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

(3)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(7)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(8)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(9)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(10)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(11)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(12)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(13)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(14)  SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(15)  Parking assist unit (optical) (With parking assist system) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION.)

(16)  360° view monitor control module (With 360° view monitor system) (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.)

(17)  Audio amplifier (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)

(18)  Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

(19)  Dashboard bracket (See DASHBOARD REMOVAL.) (See DASHBOARD INSTALLATION.)

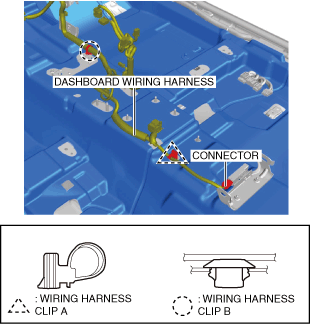

7.  Disconnect the connector and remove the wiring harness clips.

a30zzw00006179

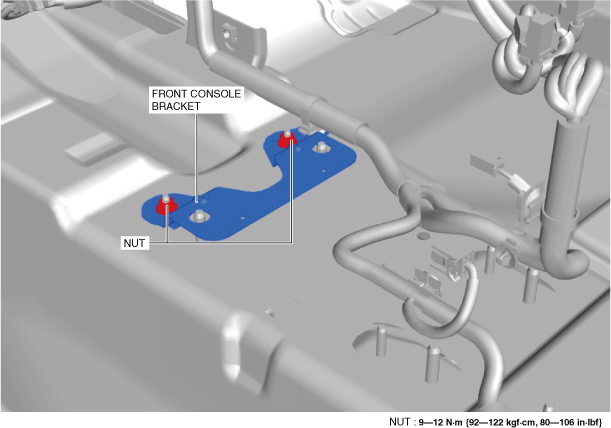

8.  Remove the nuts.

a30zzw00006180

9.  Remove the front console bracket.

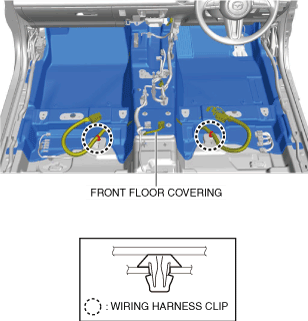

10.  Remove the wiring harness clips.

a30zzw00006181

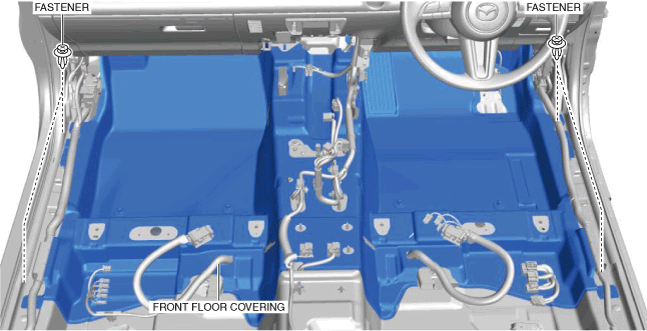

11.  Remove the fasteners.

a30zzw00006182

12.  Remove the front floor covering from the door opening.

13.  Install in the reverse order of removal. (See Front Floor Covering Installation Note.)

Rear Floor Covering

1.  Remove the select lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Remove the front seat installation bolts. (With power seat system) (See FRONT SEAT REMOVAL/INSTALLATION.)

3.  Perform the following procedure. (Without seat warmer system)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Perform the following procedure. (With seat warmer system)

(1)  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

5.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

6.  Remove the following parts:

(1)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(4)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(5)  Parking assist unit (optical) (With parking assist system) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION.)

(6)  360° view monitor control module (With 360° view monitor system) (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.)

(7)  Audio amplifier (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)

(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

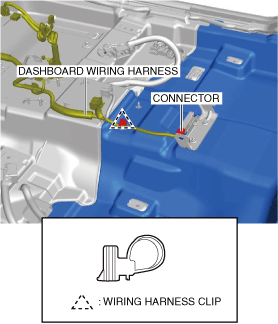

7.  Disconnect the connector and remove the wiring harness clip.

a30zzw00006183

8.  Remove the nuts.

a30zzw00006184

9.  Remove the rear console bracket.

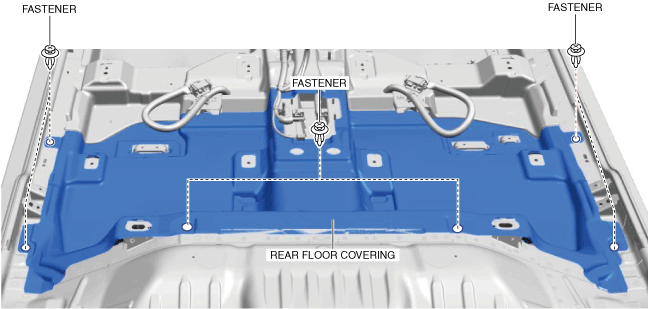

10.  Remove the fasteners.

a30zzw00006185

11.  Remove the rear floor covering from the door opening.

12.  Install in the reverse order of removal.

Front Floor Covering Installation Note

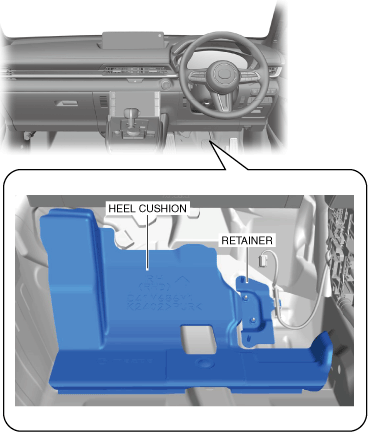

1.  Before assembling the floor covering, verify that the heel cushion does not interfere with the retainer.

a30zzw00006186
