HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

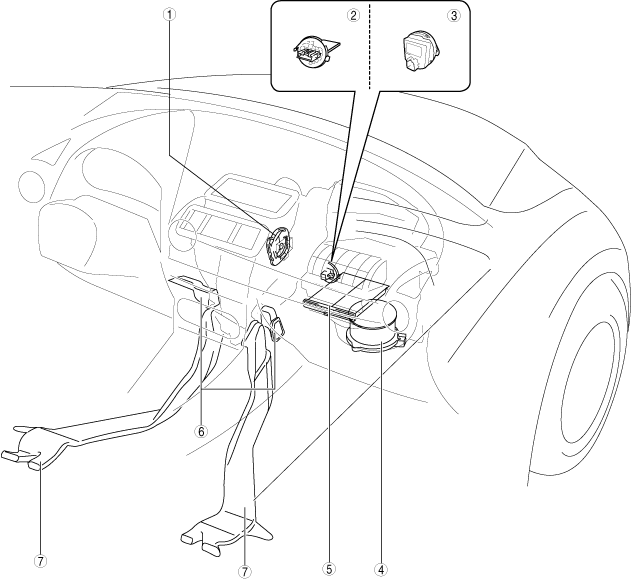

am2zzw00013178

1	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
2	Resistor (manual air conditioner (4-speed type airflow volume control dial)) (See RESISTOR REMOVAL/INSTALLATION) (See RESISTOR INSPECTION)
3	Blower fan controller (full-auto air conditioner, manual air conditioner (7-speed type airflow volume control dial)) (See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION.) (See BLOWER FAN CONTROLLER INSPECTION.)
4	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION.) (See BLOWER MOTOR INSPECTION.)
5	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
6	Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
7	Rear heat duct (with rear heat duct) (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

SKYACTIV-G 1.3, SKYACTIV-G 1.5

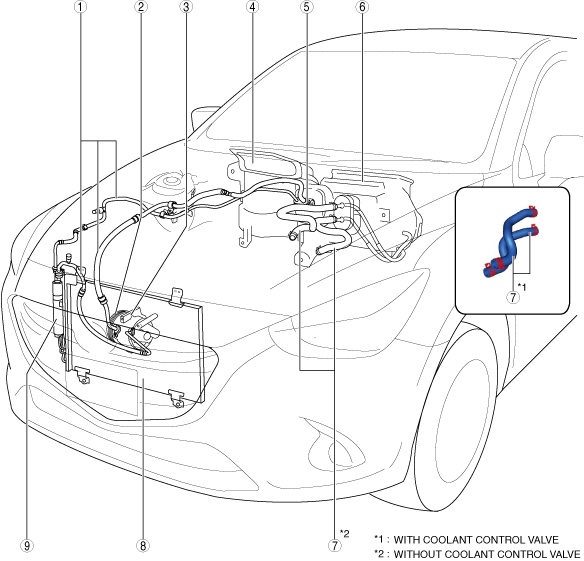

am2zzw00013179

1	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
2	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
3	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
4	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
5	Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION.)
6	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EXPANSION VALVE REMOVAL/INSTALLATION.) (See EVAPORATOR INSPECTION.) (See HEATER CORE INSPECTION.)
7	Heater hose (See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
8	Condenser (See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See CONDENSER INSPECTION.)
9	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

SKYACTIV-D 1.5

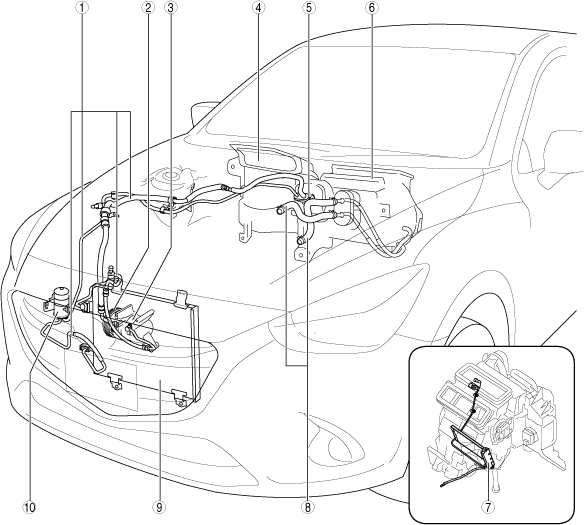

am2zzw00014042

1	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)
2	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.5].) (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 1.5].) (See MAGNETIC CLUTCH INSPECTION [SKYACTIV-D 1.5].)
3	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)
4	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
5	Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION.)
6	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EXPANSION VALVE REMOVAL/INSTALLATION.) (See EVAPORATOR INSPECTION.) (See HEATER CORE INSPECTION.)
7	PTC heater (with PTC heater) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION.) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION.)
8	Heater hose (See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)
9	Condenser (See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See CONDENSER INSPECTION.)
10	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)
