SEATS LOCATION INDEX

id091300800100

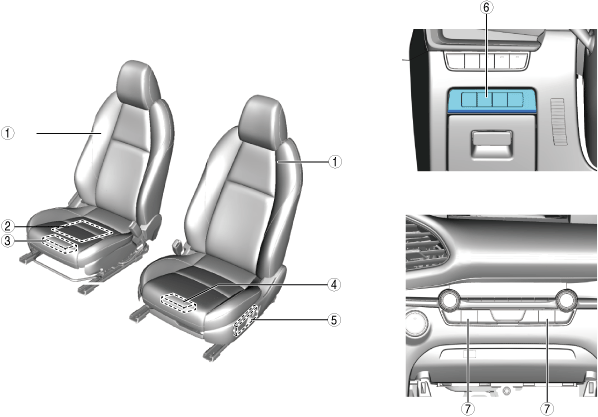

Front Seat

am3zzw00036748

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION [(E)].) (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION [(E)].) (See FRONT SEAT BACK FRAME DISASSEMBLY/ASSEMBLY [(E)].) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION [(E)].) (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].) (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION [(E)].) (See LIFT MOTOR INSPECTION.) (See SLIDE MOTOR INSPECTION.) (See RECLINER MOTOR INSPECTION.) (See SEAT WARMER UNIT INSPECTION [(E)].)
2	Occupancy sensor(With standard deployment control system) (See OCCUPANCY SENSOR INSPECTION [(E)].)
3	Position memory control unit/Seat warmer control module(With position memory system) (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION [(E)].) (See POSITION MEMORY SYSTEM MEMORY CLEARING.) (See SEAT POSITION INITIAL LEARNING.) (See SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION [(E)].) (See SEAT WARMER CONTROL UNIT INSPECTION.)
4	Seat warmer control unit(With seat warmer system/without power seat system) (See SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION [(E)].) (See SEAT WARMER CONTROL UNIT INSPECTION.)
5	Power seat switch(With power seat system) (See POWER SEAT SWITCH REMOVAL/INSTALLATION [(E)].)
6	Position memory switch(With position memory system) (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION.)
7	Seat warmer switch(With seat warmer system) (See SEAT WARMER SWITCH REMOVAL/INSTALLATION.)

Rear Seat

am3zzw00036744

1	Child-restraint seat anchor(4SD) (See CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION.)
2	Rear seat back latch (See REAR SEAT BACK LATCH REMOVAL/INSTALLATION.)
3	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.) (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION.) (See REAR SEAT HINGE REMOVAL/INSTALLATION.)
4	Rear seat center armrest (See REAR SEAT CENTER ARMREST TRIM REMOVAL/INSTALLATION.)
5	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
6	Rear seat cushion lock (See REAR SEAT CUSHION LOCK REMOVAL/INSTALLATION.)
7	Remote handle lever(4SD) (See REMOTE HANDLE LEVER REMOVAL/INSTALLATION.)
8	Rear seat back striker(5HB) (See REAR SEAT BACK STRIKER REMOVAL/INSTALLATION.)
