REAR DRAIN HOSE REMOVAL/INSTALLATION

id091500443900

4SD

1.  Position the front seat back to the fully reclined position and slide the front seat to its furthest rearward position.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(4)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(6)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(7)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(8)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(9)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(10)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(11)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(12)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(13)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(14)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(15)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(16)  Rear console bracket No.1 (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(17)  Headliner (See HEADLINER REMOVAL/INSTALLATION [(E)].)

(18)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(19)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(20)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(21)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(22)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(23)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(24)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(25)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

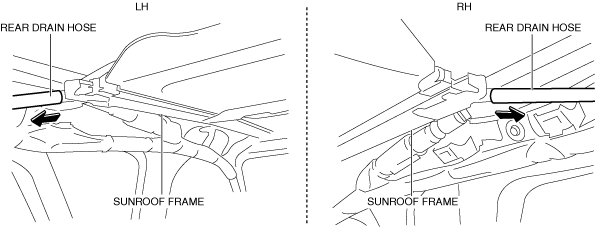

4.  Disconnect the rear drain hose from the sunroof frame.

am3zzw00026243

5.  Spread the hooks in the directions of arrows (1), pull the rear drain hose in the direction of arrow (2), and remove it from the hooks.

am3zzw00030084

6.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow.

am3zzw00026245

7.  Remove the rear drain hose.

8.  Install in the reverse order of removal.

5HB

1.  Position the front seat back to the fully reclined position and slide the front seat to its furthest rearward position.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(4)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(6)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(7)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(8)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(9)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(11)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(12)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(13)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(14)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(15)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(16)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(17)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(18)  Rear console bracket No.1 (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(19)  Headliner (See HEADLINER REMOVAL/INSTALLATION [(E)].)

(20)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(21)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(22)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(23)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(24)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(25)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(26)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(27)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(28)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

4.  Disconnect the rear drain hose from the sunroof frame.

am3zzw00026243

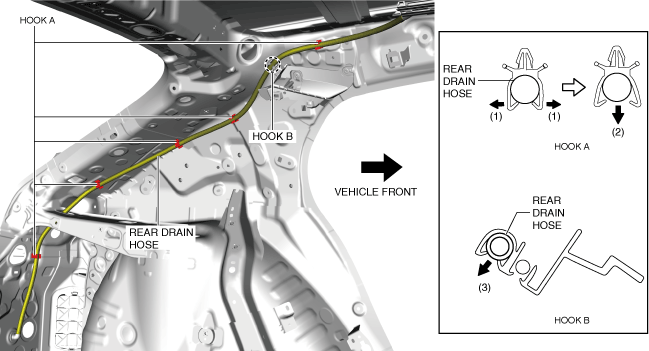

5.  Spread hooks A in the directions of arrows (1), pull the rear drain hose in the direction of arrow (2), and remove it from hooks A.

am3zzw00026246

6.  Remove the rear drain hose in the direction of arrow (3) from hook B.

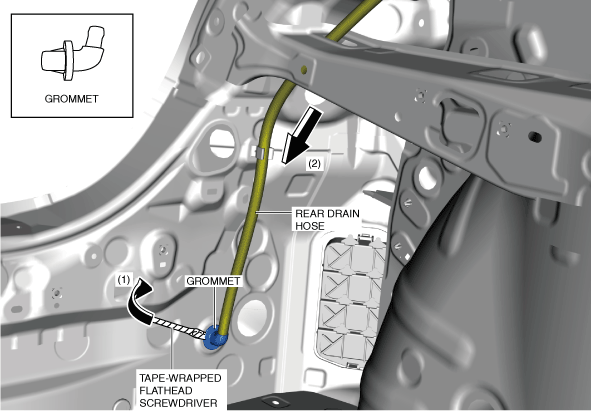

7.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of arrow (1).

am3zzw00026247

8.  Pull the rear drain hose out from the body panel in the direction of arrow (2).

9.  Install in the reverse order of removal.
