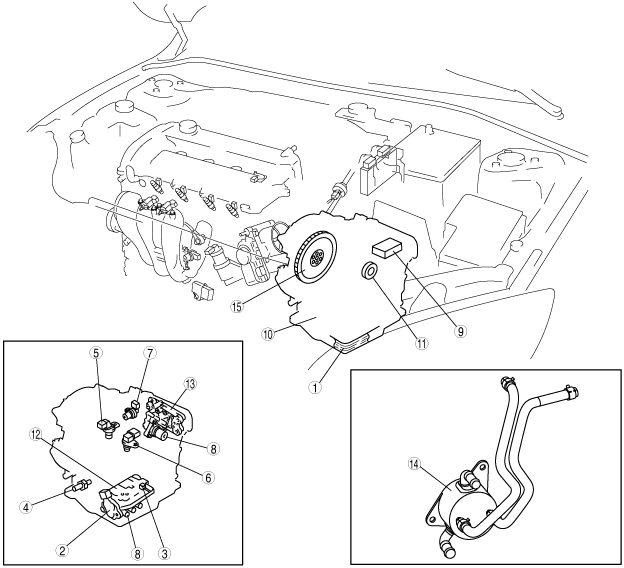

AUTOMATIC TRANSAXLE LOCATION INDEX[FS5A-EL]

id051721802000

am3zzw00003558

1	Automatic transaxle fluid (ATF) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION[FS5A-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION[FS5A-EL].)
2	Transaxle range (TR) switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTION[FS5A-EL].) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION[FS5A-EL].) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT[FS5A-EL].)
3	Transaxle fluid temperature (TFT) sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION[FS5A-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION[FS5A-EL].)
4	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION[FS5A-EL].) (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION[FS5A-EL].)
5	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION[FS5A-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION[FS5A-EL].)
6	Intermediate sensor (See INTERMEDIATE SENSOR INSPECTION[FS5A-EL].) (See INTERMEDIATE SENSOR REMOVAL/INSTALLATION[FS5A-EL].)
7	Vehicle speed sensor (See VEHICLE SPEED SENSOR (VSS) INSPECTION[FS5A-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION[FS5A-EL].)
8	Solenoid valve (See SOLENOID VALVE INSPECTION (PRIMARY CONTROL VALVE BODY)[FS5A-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION (PRIMARY CONTROL VALVE BODY)[FS5A-EL].) (See SOLENOID VALVE INSPECTION (SECONDARY CONTROL VALVE BODY)[FS5A-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION (SECONDARY CONTROL VALVE BODY)[FS5A-EL].)
9	TCM (See TCM INSPECTION[FS5A-EL].) (See TCM REMOVAL/INSTALLATION[FS5A-EL].)
10	Automatic transaxle (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION[FS5A-EL].)
11	Oil seal (See OIL SEAL REPLACEMENT[FS5A-EL].)
12	Primary control valve body (See PRIMARY CONTROL VALVE BODY REMOVAL[FS5A-EL].) (See PRIMARY CONTROL VALVE BODY INSTALLATION[FS5A-EL].)
13	Secondary control valve body (See SECONDARY CONTROL VALVE BODY REMOVAL[FS5A-EL].) (See SECONDARY CONTROL VALVE BODY INSTALLATION[FS5A-EL].)
14	Oil cooler (See OIL COOLER FLUSHING[FS5A-EL].) (See OIL COOLER REMOVAL/INSTALLATION[FS5A-EL].)
15	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION[FS5A-EL].)
