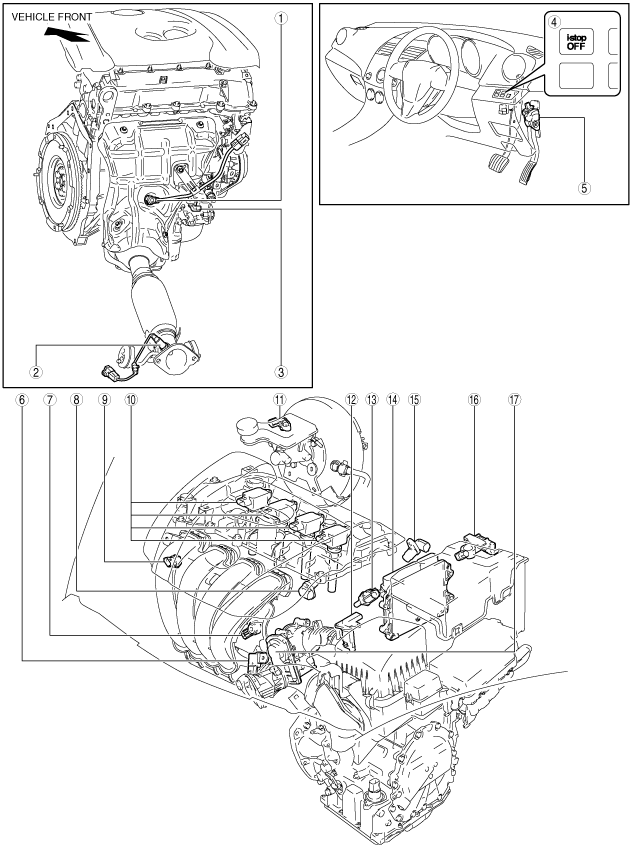

CONTROL SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]

id0140f4804100

am3zzw00012843

1	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-G 2.0].)
2	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION [SKYACTIV-G 2.0].)
3	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-G 2.0].)
4	i-stop OFF switch (See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See i-stop OFF SWITCH INSPECTION [SKYACTIV-G 2.0].)
5	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-G 2.0].)
6	MAP sensor/IAT sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-G 2.0].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.0].)
7	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See KNOCK SENSOR (KS) INSPECTION [SKYACTIV-G 2.0].)
8	Intake CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 2.0].)
9	Fuel pressure sensor (See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.0].)
10	Ion sensor (See ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See ION SENSOR INSPECTION [SKYACTIV-G 2.0].)
11	Power brake unit vacuum sensor (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-G 2.0].)
12	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-G 2.0].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.0].)
13	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G 2.0].)
14	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See PCM INSPECTION [SKYACTIV-G 2.0].) (See PCM CONFIGURATION [SKYACTIV-G 2.0].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-G 2.0].)
15	Exhaust CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 2.0].)
16	Current sensor (See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CURRENT SENSOR INSPECTION [SKYACTIV-G 2.0].)
17	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-G 2.0].)
