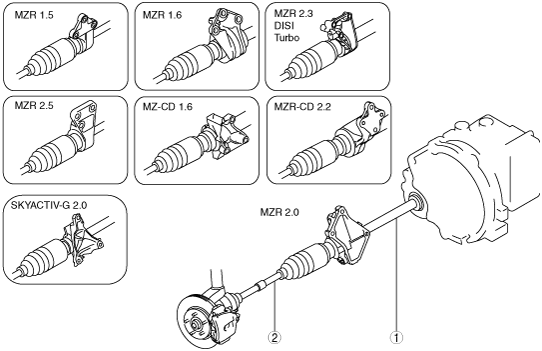

DRIVE SHAFT LOCATION INDEX

id031300800100

am3zzw00011419

1

Joint shaft (See JOINT SHAFT INSPECTION.) (See JOINT SHAFT REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6, MZR 2.3 DISI Turbo, MZR 2.5].) (See JOINT SHAFT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.0 DISI i-stop].) (See JOINT SHAFT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6, MZR-CD 2.2].) (See JOINT SHAFT DISASSEMBLY [MZR 1.5].) (See JOINT SHAFT DISASSEMBLY [MZR 1.6].) (See JOINT SHAFT DISASSEMBLY [MZR 2.0, MZR 2.0 DISI i-stop, MZR 2.5].) (See JOINT SHAFT DISASSEMBLY [SKYACTIV-G 2.0].) (See JOINT SHAFT DISASSEMBLY [MZR 2.3 DISI Turbo].) (See JOINT SHAFT DISASSEMBLY [MZR-CD 2.2].) (See JOINT SHAFT ASSEMBLY [MZR 1.5].) (See JOINT SHAFT ASSEMBLY [MZR 1.6].) (See JOINT SHAFT ASSEMBLY [MZR 2.0, MZR2.0 DISI i-stop, MZR 2.5 (MTX)].) (See JOINT SHAFT ASSEMBLY [SKYACTIV-G 2.0].) (See JOINT SHAFT ASSEMBLY [MZR 2.3 DISI Turbo].) (See JOINT SHAFT ASSEMBLY [MZR 2.5 (ATX)].) (See JOINT SHAFT ASSEMBLY [MZR-CD 2.2].)

2

Drive shaft (See DRIVE SHAFT INSPECTION.) (See DRIVE SHAFT REMOVAL/INSTALLATION.) (See DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY.) (See DRIVE SHAFT (DOUBLE OFFSET JOINT) DISASSEMBLY/ASSEMBLY.)
