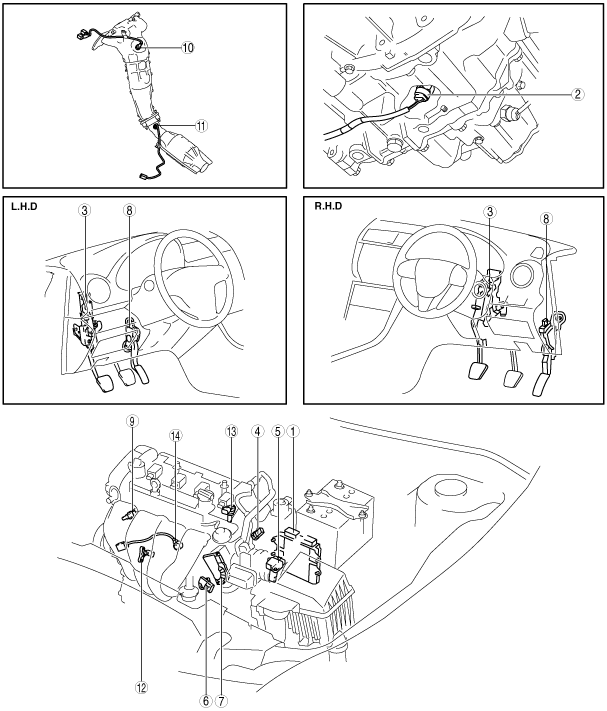

CONTROL SYSTEM LOCATION INDEX [MZR 2.0 DISI]

id0140j3804100

am6zzw00007235

1	PCM (See PCM REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See PCM INSPECTION [MZR 2.0 DISI].) (See PCM CONFIGURATION [MZR 2.0 DISI].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [MZR 2.0 DISI].)
2	Neutral switch (MTX) (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R].) (See NEUTRAL SWITCH INSPECTION [MZR 2.0 DISI].)
3	CPP switch (MTX) (See CLUTCH PEDAL REMOVAL/INSTALLATION [G66M-R].) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZR 2.0 DISI].)
4	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZR 2.0 DISI].)
5	MAF/IAT sensor (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZR 2.0 DISI].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [MZR 2.0 DISI].)
6	MAP sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [MZR 2.0 DISI].)
7	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [MZR 2.0 DISI].)
8	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZR 2.0 DISI].)
9	Fuel pressure sensor (See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See FUEL PRESSURE SENSOR INSPECTION [MZR 2.0 DISI].)
10	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [MZR 2.0 DISI].)
11	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION [MZR 2.0 DISI].)
12	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [MZR 2.0 DISI].) (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI].)
13	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [MZR 2.0 DISI].)
14	KS (See KNOCK SENSOR (KS) INSPECTION [MZR 2.0 DISI].) (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [MZR 2.0 DISI].)
