PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION

id071100002800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(4)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(5)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(8)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(9)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(10)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(11)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(12)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(13)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)

(14)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(15)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(16)  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(17)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(18)  Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Detach the clips.

ac5wzw00008746

4.  Remove the adhesive polyurethane.

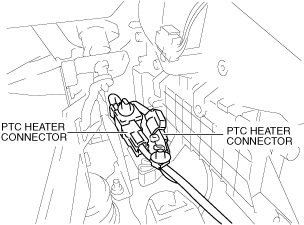

5.  Disconnect the PTC heater connectors.

ac5wzw00008747

6.  Remove the PTC heater wiring harness from the hook.

ac5wzw00008748

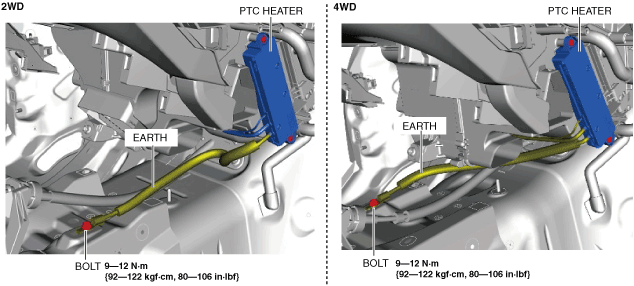

7.  Remove the bolt.

am6zzw00015946

8.  Disconnect the earth.

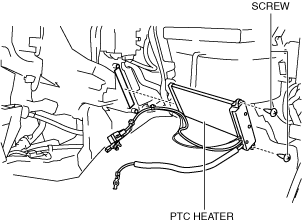

9.  Remove the screws.

ac5wzw00008750

10.  Remove the PTC heater.

11.  Install in the reverse order of the removal.
