HVAC CONTROL SYSTEM LOCATION INDEX

id074000803600

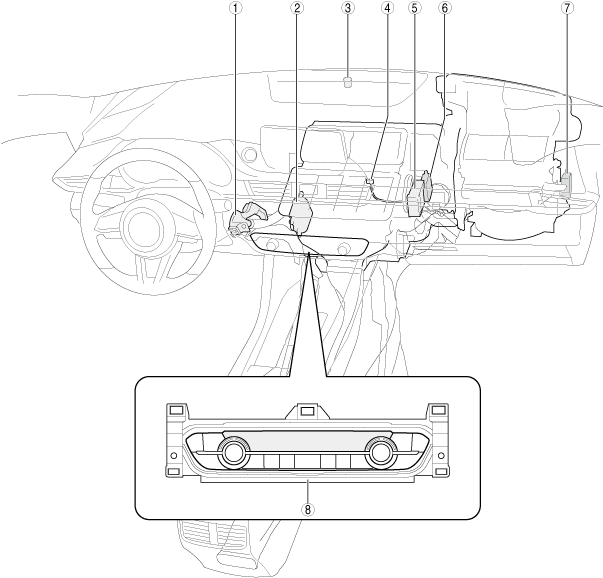

Inside cabin

am6zzw00016091

1	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See CABIN TEMPERATURE SENSOR INSPECTION.)
2	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See AIR MIX ACTUATOR INSPECTION.)
3	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.) (See SOLAR RADIATION SENSOR INSPECTION.)
4	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
5	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL.) (See AIRFLOW MODE ACTUATOR INSTALLATION.) (See AIRFLOW MODE ACTUATOR INSPECTION.)
6	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See AIR MIX ACTUATOR INSPECTION.)
7	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
8	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See CLIMATE CONTROL UNIT INSPECTION.)

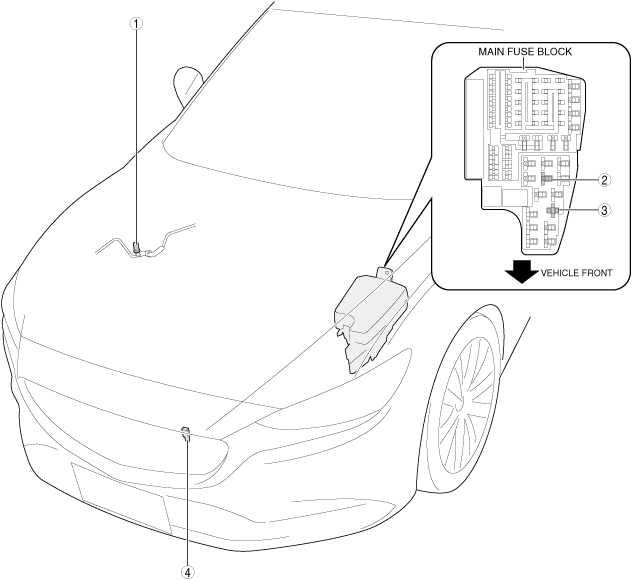

Exterior

am6zzw00016092

1	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION.) (See REFRIGERANT PRESSURE SENSOR INSPECTION.)
2	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See AMBIENT TEMPERATURE SENSOR INSPECTION.)
