ROOF MOLDING INSTALLATION
id091600447600
4SD

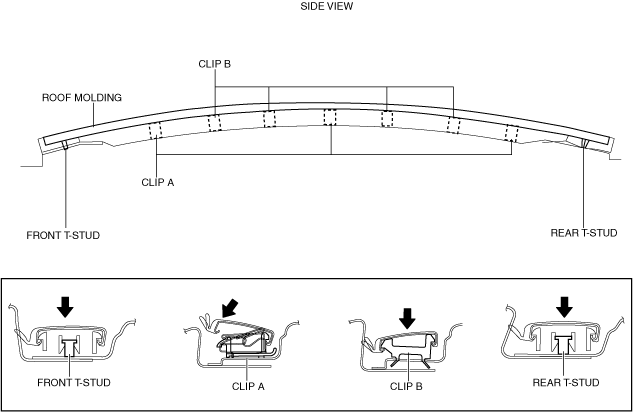

1. Install the roof molding to the front T-studs.
2. Hook the roof molding to clip A and attach the roof molding while pressing it in the direction of the arrow shown in the figure.
3. Install the roof molding to the rear T-stud.
4. Press in the clips B installation positions shown in the figure and firmly adhere them to the body.
WGN
With Roof Rail
1. Install the roof molding to the front T-studs.
2. Hook the roof molding to clip A and attach the roof molding No.1 while pressing it in the direction of the arrow shown in the figure.
3. Hook the roof molding to clips B and attach the roof molding No.2 while pressing it in the direction of the arrow shown in the figure.
4. Press in clips C installation positions shown in the figure and firmly adhere them to the body.
5. Install the following parts:
- (1) Roof rail (See ROOF RAIL REMOVAL/INSTALLATION.)
-
- (2) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-
- (3) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (4) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (5) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
-
- (6) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (7) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (8) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (9) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
-
- (10) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (12) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (13) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (14) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (15) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (16) Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (17) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (18) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (19) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
-
- (20) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (21) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (22) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
6. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
Without Roof Rail

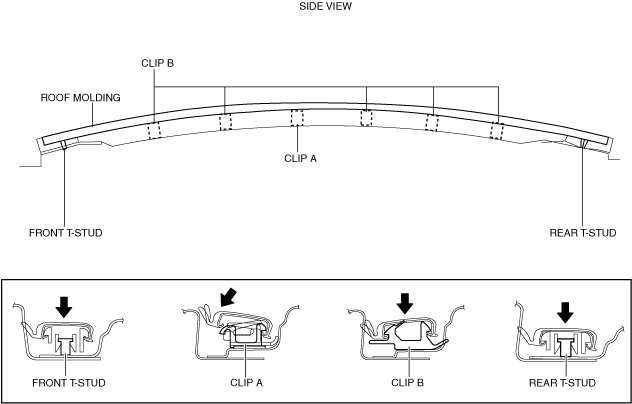

1. Install the roof molding to the front T-studs.
2. Hook the roof molding to clips A and attach the roof molding while pressing it in the direction of the arrow shown in the figure.
3. Install the roof molding to the rear T-stud.
4. Press in clips B installation positions shown in the figure and firmly adhere them to the body.
