DASHBOARD DISASSEMBLY/ASSEMBLY

id091700800400

1.  Disassemble in the order indicated in the table.

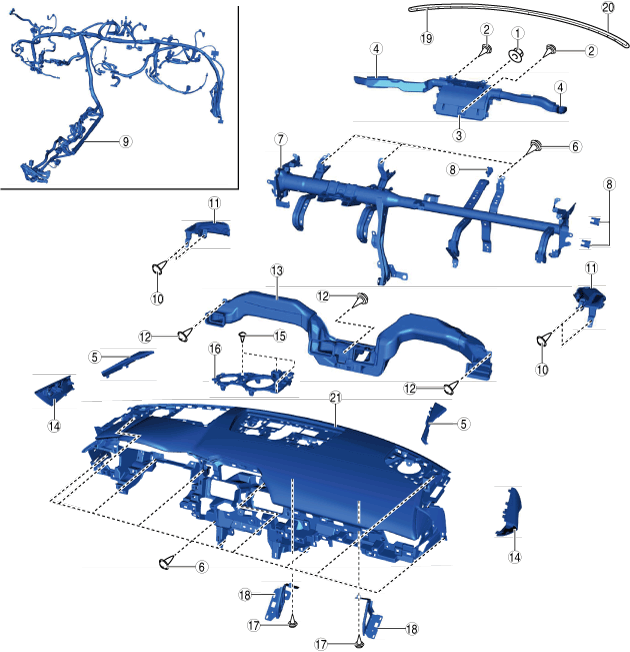

am6zzw00018060

1	Nut
2	Screw
3	Center defroster
4	Demister duct No.1
5	Garnish
6	Screw
7	Dashboard member
8	Member junction
9	Wiring harness
10	Screw
11	Demister duct No.2
12	Screw
13	Center duct
14	Side cover
15	Screw
16	Center hole cover
17	Screw
18	Dashboard bracket
19	Seal tape No.1
20	Seal tape No.2
21	Dashboard

2.  Assemble in the reverse order of disassembly.

Note

•  When replacing the dashboard, remove the following parts:

1.  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

2.  Side speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

3.  Front center speaker (with Bose^®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

4.  Front side speaker (with Bose^®) (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION.)

5.  Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

6.  Keyless antenna (See KEYLESS ANTENNA REMOVAL/INSTALLATION.)

7.  Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

8.  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

9.  Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

10.  Meter hood No.2 (with active driving display) (See METER HOOD REMOVAL/INSTALLATION.)

11.  Parking assist unit (with parking sensor) (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.)

12.  Front parking sensor buzzer (with parking sensor) (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION.)
