VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION
id091800820100
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
-
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (7) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (9) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (10) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (11) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (12) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (13) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (14) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (15) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (16) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (17) Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)
-
- (18) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
-
- (19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (20) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (21) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
-
- (22) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)
-
- (23) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (24) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (25) Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (26) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-
3. Disconnect the connector.

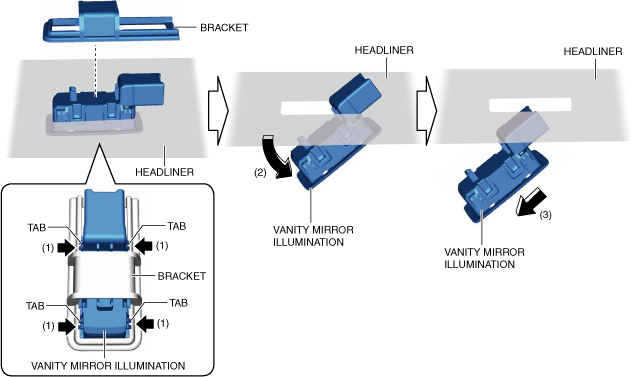

4. Remove the bracket while pressing the vanity mirror illumination tabs (1).
-
Caution
-
• If the vanity mirror illumination is removed from the bracket, the vanity mirror illumination may fall off and be damaged. When removing the vanity mirror illumination from the bracket, hold the vanity mirror illumination on the lens side with a hand during servicing.
5. Move the vanity mirror illumination in the direction of the arrow (2), (3) and remove the vanity mirror illumination from the headliner.
6. Install in the reverse order of removal.
