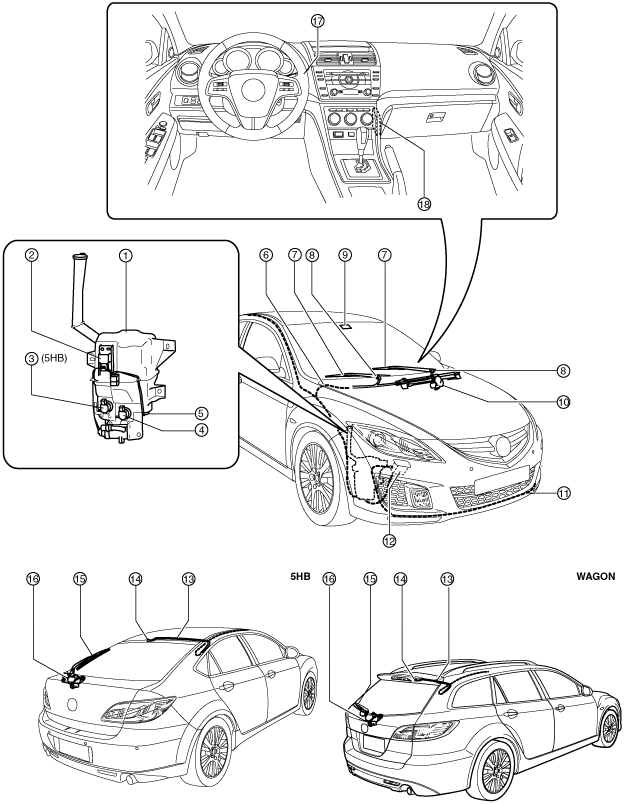

WIPER/WASHER SYSTEM LOCATION INDEX


id091900800100

am6zzw00004687

1
Washer tank
2
Headlight cleaner control module
3
Rear washer motor
4
Windshield washer motor
5
Washer fluid-level sensor
6
Windshield washer hose
7
Windshield wiper arm and blade
8
Windshield washer nozzle
9
Rain sensor
10
Windshield wiper motor
11
Headlight cleaner hose
12
Headlight cleaner
13
Rear washer hose
14
Rear washer nozzle
15
Rear wiper arm and blade
16
Rear wiper motor
17
Wiper and washer switch
18
Auto light/wiper control module
