REAR DRAIN HOSE REMOVAL/INSTALLATION
id091500443900
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (4) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (5) Lower decoration panel (With center display) (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (7) Passenger-side front side trim (With center display) (L.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (8) Glove compartment (With center display) (L.H.D.) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (9) Dashboard under cover (With center display) (L.H.D.) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (10) Passenger-side lower panel (With center display) (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (11) Driver-side front side trim (With center display) (R.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (12) Bonnet release lever (With center display) (R.H.D.) (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (13) Fuel-filler lid opener lever (With center display) (R.H.D.) (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (14) Driver-side lower panel (With center display) (R.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (15) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (16) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (17) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (18) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (19) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (20) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (21) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (22) Tonneau cover (With tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)
-
- (23) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (24) Bass-box (With Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (25) Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)
-
- (26) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (27) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (28) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (29) Head restraint
-
- (30) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-

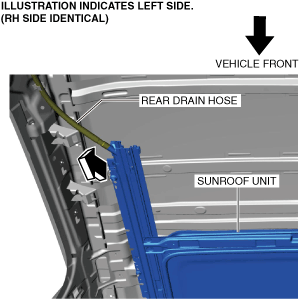

3. Disconnect the rear drain hose in the direction of the arrow shown in the figure.

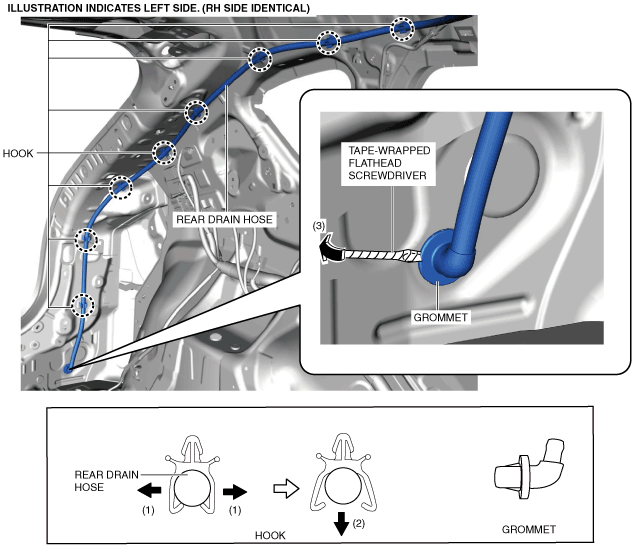

4. Spread the hooks in the directions of arrows (1), move the rear drain hose in the direction of arrow (2), and remove it from the hooks.
5. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrow (3), and remove the grommet.
6. Remove the rear drain hose.
7. Install in the reverse order of removal.
