REAR MAP LIGHT INSPECTION

id091800810600

Map Light (Bulb Type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system)(See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Drive-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(9)  Fuel-filler lid opener and lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(10)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(11)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(12)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(13)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(14)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(16)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(17)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(18)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(19)  Bass-box (with Bose®)(See BASS-BOX REMOVAL/INSTALLATION.)

(20)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(21)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(22)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(23)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(24)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(25)  Rear map light (See REAR MAP LIGHT REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the rear map light terminals is as indicated in the table.

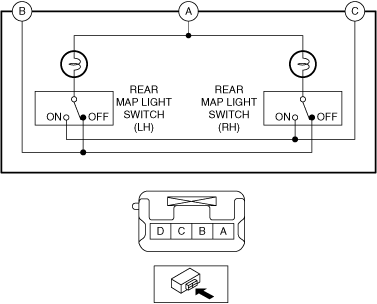

ac5uuw00005579

ac5uuw00005580

•  If not as indicated in the table, replace the rear map light or rear map light bulb. (See REAR MAP LIGHT REMOVAL/INSTALLATION.) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION.)

Map Light (ELD Type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system)(See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Drive-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(9)  Fuel-filler lid opener and lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(10)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(11)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(12)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(13)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(14)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(16)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(17)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(18)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(19)  Bass-box (with Bose®)(See BASS-BOX REMOVAL/INSTALLATION.)

(20)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(21)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(22)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(23)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(24)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(25)  Rear map light (See REAR MAP LIGHT REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the rear map light terminals is as indicated in the table.

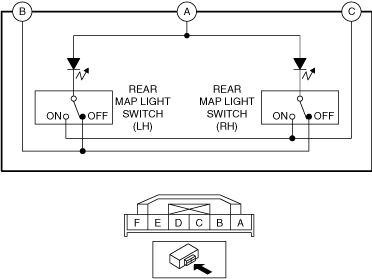

am6zzw00017444

am6zzw00017445

•  If not as indicated in the table, replace the rear map light or rear map light bulb. (See REAR MAP LIGHT REMOVAL/INSTALLATION.) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION.)
