ANTENNA FEEDER NO.3 INSPECTION

id092000813000

Without center display

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Sunroof seaming welt (With sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(5) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(9) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(10) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(11) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(12) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(13) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(14) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(16) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(17) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(18) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(19) Bass-box (With Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(20) Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(21) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(22) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(23) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(24) Head restraint

(25) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

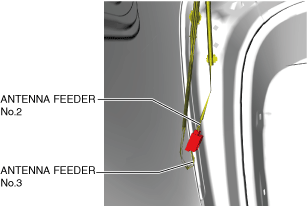

3. Disconnect antenna feeder No.2.

ac5uuw00007819

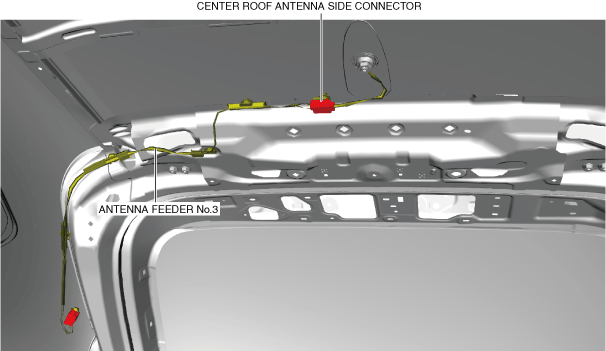

4. Disconnect center roof antenna side connector.

ac5uuw00007820

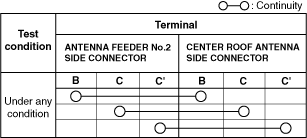

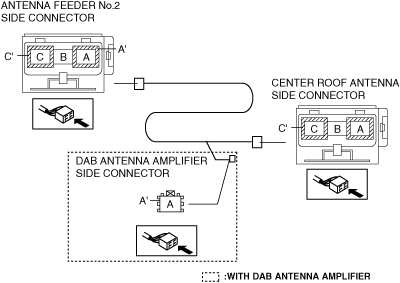

5. Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

• If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

ac5uuw00007821

ac5uuw00007822

With center display
