CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100800100

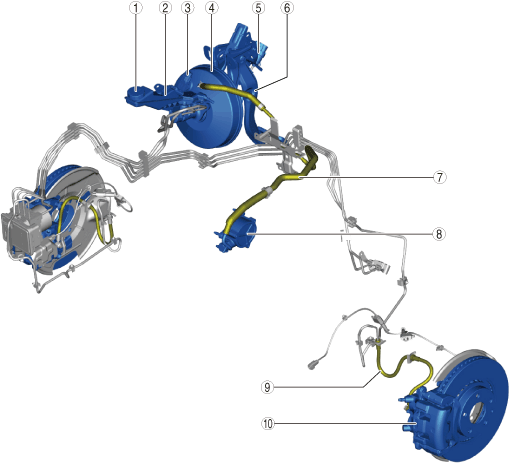

Vehicle Front Side

L.H.D.

ac5wzw00011300

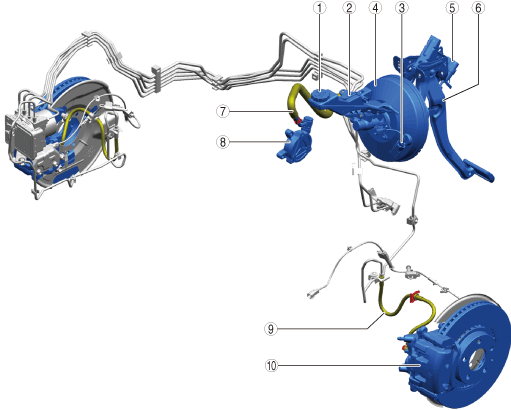

R.H.D.

ac8jjw00000601

1
Brake fluid
(See BRAKE FLUID INSPECTION.)
(See BRAKE FLUID AIR BLEEDING.)
2
Master cylinder
(See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].)
(See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].)
(See BRAKE FLUID LEVEL SENSOR INSPECTION.)
3
Power brake unit vacuum sensor
(See POWER BRAKE UNIT VACUUM SENSOR REMOVAL/INSTALLATION [L.H.D.].)
(See POWER BRAKE UNIT VACUUM SENSOR REMOVAL/INSTALLATION [R.H.D.].)
4
Power brake unit
(See POWER BRAKE UNIT INSPECTION.)
(See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].)
(See POWER BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].)
5
Brake switch
(See BRAKE SWITCH INSPECTION.)
6
Brake pedal
(See BRAKE PEDAL INSPECTION.)
(See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].)
(See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)
7
Vacuum line
(See VACUUM LINE INSPECTION [SKYACTIV-G 2.5].)
(See VACUUM LINE INSPECTION [SKYACTIV-D 2.2].)
(See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-G 2.5)].)
(See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (SKYACTIV-G 2.5)].)
(See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
8
Vacuum pump
(See VACUUM PUMP INSPECTION.)
(See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
9
Front brake hose
(See FRONT BRAKE HOSE REMOVAL/INSTALLATION.)
10
Front brake
(See FRONT BRAKE INSPECTION.)
(See FRONT BRAKE DISC REMOVAL/INSTALLATION.)
(See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION.)
(See FRONT BRAKE CALIPER REMOVAL/INSTALLATION.)
(See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY.)
(See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION.)

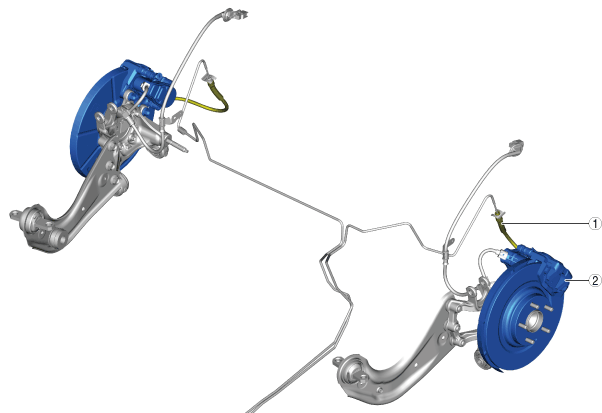

Vehicle Rear Side

ac8jjw00000602

1
Rear brake hose
(See REAR BRAKE HOSE REMOVAL/INSTALLATION.)
2
Rear brake
(See REAR BRAKE INSPECTION.)
(See REAR BRAKE DISC REMOVAL/INSTALLATION.)
(See REAR BRAKE DISC PAD REMOVAL/INSTALLATION.)
(See REAR BRAKE CALIPER REMOVAL/INSTALLATION.)
(See REAR BRAKE CALIPER DISASSEMBLY/ASSEMBLY.)
(See REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION.)
