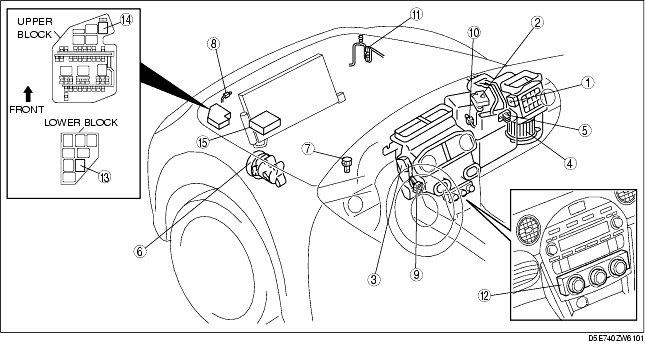

L.H.D.

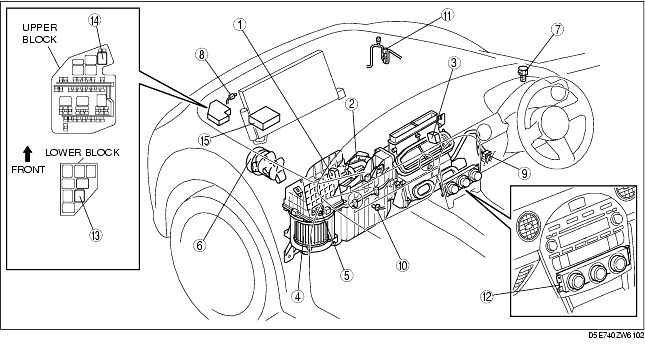

R.H.D.
|
1
|
Air intake actuator
|
|
2
|
Air mix actuator
|
|
3
|
Airflow mode actuator
|
|
4
|
Blower motor
(See BLOWER MOTOR INSPECTION.)
|
|
5
|
Power MOS FET
|
|
6
|
Magnetic clutch
(See MAGNETIC CLUTCH ADJUSTMENT.)
(See MAGNETIC CLUTCH INSPECTION.)
|
|
7
|
Solar radiation sensor (Full-auto air conditioner)
|
|
8
|
Ambient temperature sensor (Full-auto air conditioner)
|
|
9
|
Cabin temperature sensor (Full-auto air conditioner)
|
|
10
|
Evaporator temperature sensor
|
|
11
|
Refrigerant pressure switch
|
|
12
|
Climate control unit
|
|
13
|
A/C relay
(See RELAY INSPECTION.)
|
|
14
|
Blower relay
(See RELAY INSPECTION.)
|
|
15
|
PCM
(See PCM INSPECTION [L8, LF].)
|
