AUTOMATIC TRANSMISSION LOCATION INDEX [SJ6A-EL]

id051311249000

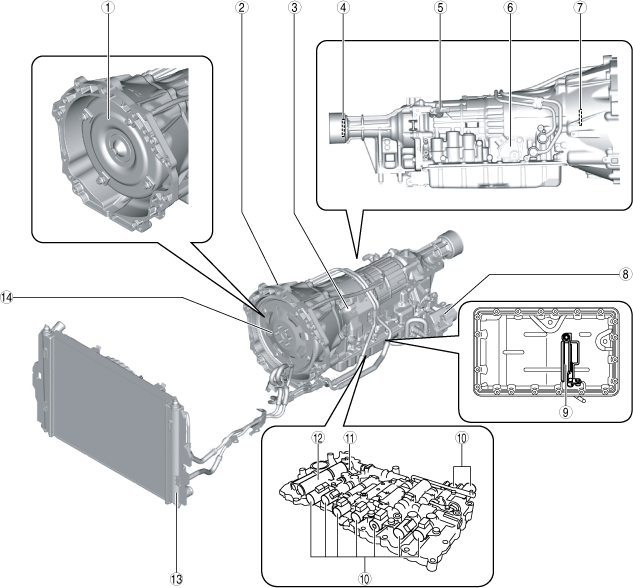

Transmission Parts

amxzzw00004459

1	Torque converter (See TORQUE CONVERTER REMOVAL/INSTALLATION [SJ6A-EL].)
2	Automatic transmission (See MECHANICAL SYSTEM TEST [SJ6A-EL].) (See ROAD TEST [SJ6A-EL].) (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION [SJ6A-EL].) (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL].) (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT [SJ6A-EL].) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].) (See POWER PLANT FRAME REMOVAL/INSTALLATION [SJ6A-EL].)
3	Turbine sensor (See TURBINE SENSOR INSPECTION [SJ6A-EL].) (See TURBINE SENSOR REMOVAL/INSTALLATION [SJ6A-EL].)
4	Oil seal (extension housing) (See OIL SEAL (EXTENSION HOUSING) REPLACEMENT [SJ6A-EL].)
5	Vehicle speed sensor (VSS) (See VEHICLE SPEED SENSOR (VSS) INSPECTION [SJ6A-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [SJ6A-EL].)
6	Transmission range (TR) switch (See TRANSMISSION RANGE (TR) SWITCH INSPECTION [SJ6A-EL].) (See TRANSMISSION RANGE (TR) SWITCH REMOVAL/INSTALLATION [SJ6A-EL].) (See TRANSMISSION RANGE (TR) SWITCH ADJUSTMENT [SJ6A-EL].)
7	Oil seal (oil pump) (See OIL SEAL (OIL PUMP) REPLACEMENT [SJ6A-EL].)
8	Electric AT oil pump (With i-stop) (See ELECTRIC AT OIL PUMP INSPECTION [SJ6A-EL].) (See ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [SJ6A-EL].)
9	Oil strainer (electric AT oil pump) (With i-stop) (See OIL STRAINER (ELECTRIC AT OIL PUMP) REMOVAL/INSTALLATION [SJ6A-EL].)
10	Solenoid valve (See SOLENOID VALVE INSPECTION [SJ6A-EL].)
11	Transmission fluid temperature (TFT) sensor (See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR INSPECTION [SJ6A-EL].) (See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [SJ6A-EL].)
12	Control valve body (See CONTROL VALVE BODY REMOVAL [SJ6A-EL].) (See CONTROL VALVE BODY INSTALLATION [SJ6A-EL].)
13	Oil cooler (See OIL COOLER FLUSHING [SJ6A-EL].) (See OIL COOLER REMOVAL/INSTALLATION [SJ6A-EL].)
14	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [SJ6A-EL].)

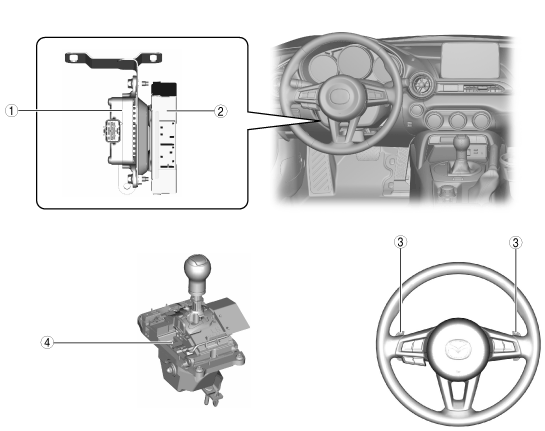

Cabin Interior Parts (L.H.D.)

amxzzw00003319

1	Electric AT oil pump driver control unit (With i-stop) (See ELECTRIC AT OIL PUMP DRIVER CONTROL UNIT INSPECTION [SJ6A-EL].) (See ELECTRIC AT OIL PUMP DRIVER CONTROL UNIT REMOVAL/INSTALLATION [SJ6A-EL].)
2	TCM (See TCM INSPECTION [SJ6A-EL].) (See TCM REMOVAL/INSTALLATION [SJ6A-EL].) (See INITIAL LEARNING PROCEDURE [SJ6A-EL].)
3	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION [SJ6A-EL].) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [SJ6A-EL].)
4	Selector lever (See M POSITION SWITCH INSPECTION [SJ6A-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [SJ6A-EL].) (See UP SWITCH INSPECTION [SJ6A-EL].) (See UP SWITCH REMOVAL/INSTALLATION [SJ6A-EL].) (See DOWN SWITCH INSPECTION [SJ6A-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [SJ6A-EL].)

Cabin Interior Parts (R.H.D.)

ardjjw00004895

1	Electric AT oil pump driver control unit (With i-stop) (See ELECTRIC AT OIL PUMP DRIVER CONTROL UNIT INSPECTION [SJ6A-EL].) (See ELECTRIC AT OIL PUMP DRIVER CONTROL UNIT REMOVAL/INSTALLATION [SJ6A-EL].)
2	TCM (See TCM INSPECTION [SJ6A-EL].) (See TCM REMOVAL/INSTALLATION [SJ6A-EL].) (See INITIAL LEARNING PROCEDURE [SJ6A-EL].)
3	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION [SJ6A-EL].) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [SJ6A-EL].)
4	Selector lever (See M POSITION SWITCH INSPECTION [SJ6A-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [SJ6A-EL].) (See UP SWITCH INSPECTION [SJ6A-EL].) (See UP SWITCH REMOVAL/INSTALLATION [SJ6A-EL].) (See DOWN SWITCH INSPECTION [SJ6A-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [SJ6A-EL].)
