REAR WASHER HOSE REMOVAL/INSTALLATION [(E)]

id0919008016x2

Replacement Part

Inner liftgate gromet

Quantity: 2

Location of use: Liftgate


Rear Washer Hose A

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

3.  Disconnect the rear washer hose A from the washer motor.

am3zzw00027201

4.  Remove the rear washer hose A from the washer tank hook.

5.  Remove the rear washer hose A from clips A.

6.  Disconnect the rear washer hose A from the joint pipe A and remove it.

7.  Install in the reverse order of removal.


Rear Washer Hose B


L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

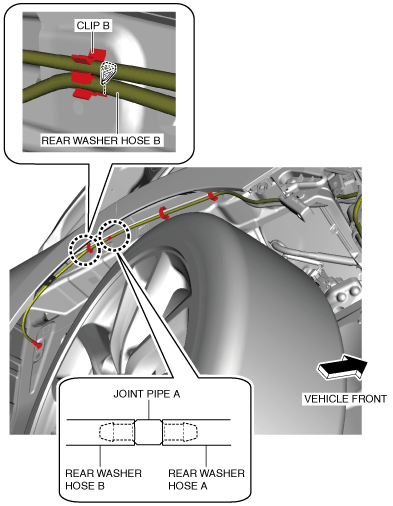

3.  Disconnect the rear washer hose B from the joint pipe A.

am3zzw00032131

4.  Remove the rear washer hose B from the clip B.

5.  Remove the following parts:

1.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
2.  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

6.  Pull out the grommet into the cabin side.

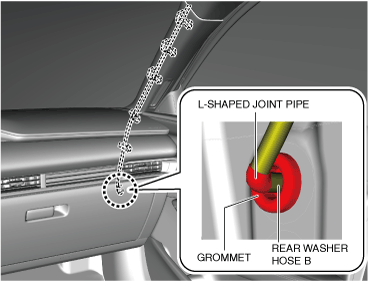

7.  Disconnect rear washer hose B from the L-shaped joint pipe.

am3zzw00034676

8.  Install in the reverse order of removal.


R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

3.  Disconnect the rear washer hose B from the joint pipe A.

am3zzw00032131

4.  Remove the rear washer hose B from clip B.

5.  Remove the following parts:

(1)  (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  (See DECORATION PANEL REMOVAL/INSTALLATION.)
(4)  (See DECORATION PANEL REMOVAL/INSTALLATION.)
(5)  (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)
(6)  (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
(7)  (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].)(See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)(See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)
(8)  (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
(9)  (See SHIFT PANEL REMOVAL/INSTALLATION.)
(10)  (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(11)  (See CUP HOLDER REMOVAL/INSTALLATION.)
(12)  (See SIDE WALL REMOVAL/INSTALLATION.)
(13)  (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)
(14)  (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
(15)  (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].)(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
(16)  (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(17)  (See COLUMN COVER REMOVAL/INSTALLATION.)
(18)  (See COLUMN COVER REMOVAL/INSTALLATION.)
(19)  (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
(20)  (See LIGHT SWITCH INSPECTION [(E)].)
(21)  (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)
(22)  (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(23)  (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(24)  (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].)

6.  Pull out the grommet into the cabin side.

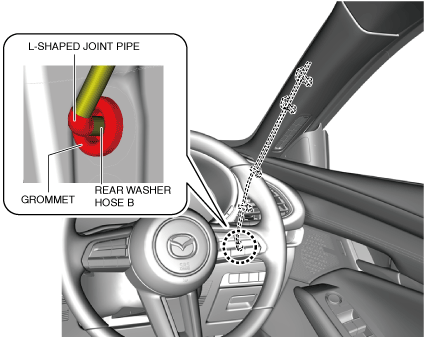

7.  Disconnect rear washer hose B from the L-shaped joint pipe.

am3zzw00032160

8.  Install in the reverse order of removal.


Rear Washer Hose C

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  (See DECORATION PANEL REMOVAL/INSTALLATION.)
(4)  (See DECORATION PANEL REMOVAL/INSTALLATION.)
(5)  (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)
(6)  (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
(7)  (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].)(See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)(See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)
(8)  (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
(9)  (See SHIFT PANEL REMOVAL/INSTALLATION.)
(10)  (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(11)  (See CUP HOLDER REMOVAL/INSTALLATION.)
(12)  (See SIDE WALL REMOVAL/INSTALLATION.)
(13)  (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)
(14)  (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
(15)  (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].)(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
(16)  (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(17)  (See COLUMN COVER REMOVAL/INSTALLATION.)
(18)  (See COLUMN COVER REMOVAL/INSTALLATION.)
(19)  (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
(20)  (See LIGHT SWITCH INSPECTION [(E)].)
(21)  (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)
(22)  (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(23)  (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
(24)  (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].)
(25)  (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

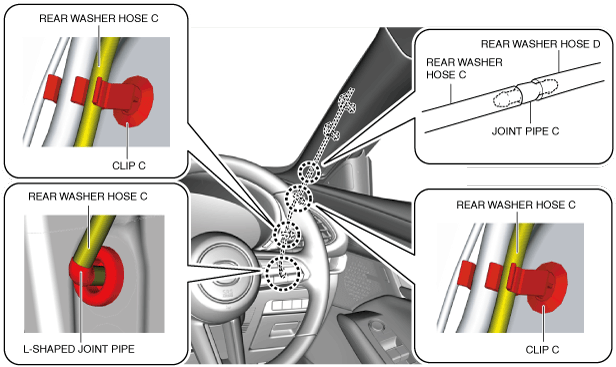

3.  Disconnect rear washer hose C from the L-shaped joint pipe.

4.  Remove the rear washer hose C from clip C.

am3zzw00032161

5.  Disconnect the rear washer hose C from the joint pipe C.

6.  Install in the reverse order of removal.


Rear Washer Hose D

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)
(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(3)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(4)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(5)  Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION [(E)].)
(6)  Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(9)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(10)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)
(11)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
(12)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
(13)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(14)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(15)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)
(16)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(17)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)
(18)  Rear vent duct No.2 (with rear vent duct) (See VENTILATOR GRILLE REMOVAL/INSTALLATION [(E)].)
(19)  Rear vent duct No.1 (with rear vent duct) (See VENTILATOR GRILLE REMOVAL/INSTALLATION [(E)].)
(20)  Rear console bracket No.1
(21)  Headliner (See HEADLINER REMOVAL/INSTALLATION [(E)].)

3.  Remove the rear washer hose C from the clip.

am3zzw00027202

4.  Remove the rear washer hose C. (See Rear Washer Hose D.)

5.  Install in the reverse order of removal.


Rear Washer Hose D

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

3.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(2)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(3)  C-pillar trim (RH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(4)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

4.  Partially peel back the headliner. (See HEADLINER REMOVAL/INSTALLATION [(E)].)

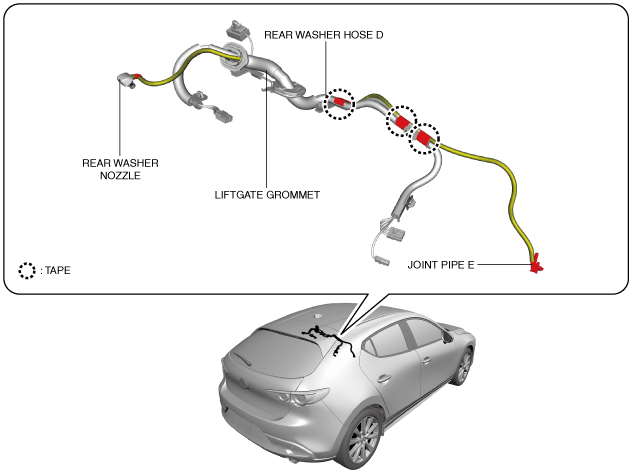

5.  Disconnect the rear washer hose C from the joint pipe E.

am3zzw00027200

6.  Remove the tape.

7.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

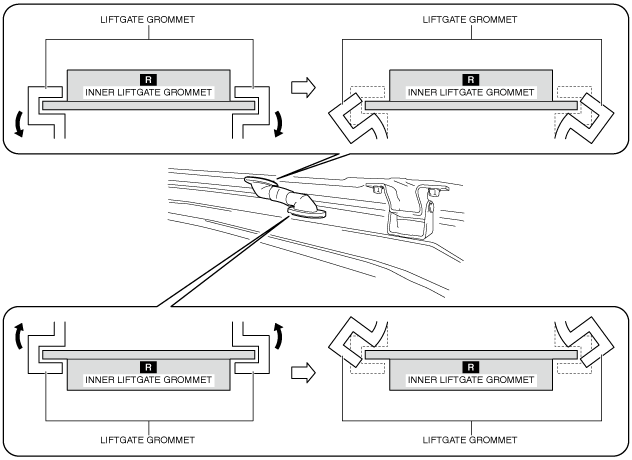

8.  Partially peel the liftgate grommet in the direction of arrows shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

am3zzw00027392

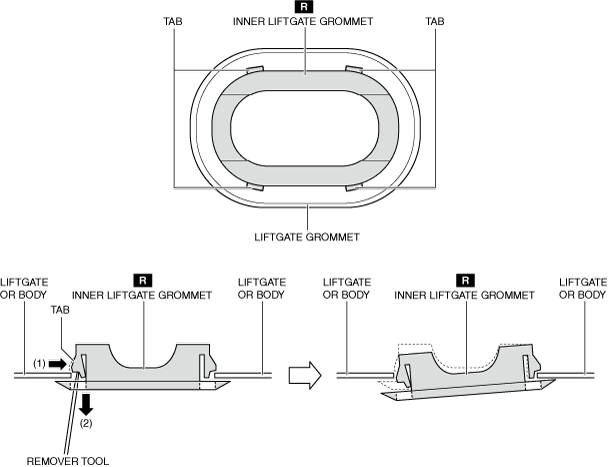

9.  While pressing the tab of the inner liftgate grommet in the direction of arrow (1) shown in the figure, pull the inner liftgate grommet in the direction of arrow (2) and detach the tab of the inner liftgate grommet from the liftgate or body.

ac9uuw00007296

10.  Detach all the tabs of the inner liftgate grommet from the liftgate and remove the inner liftgate grommet.

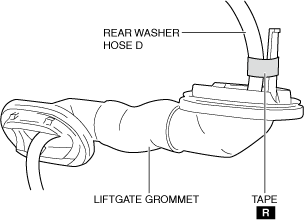

11.  Remove the tape. (See Rear Washer Hose D.)

ac9uuw00008473

12.  Disconnect rear washer hose D from the joint pipe D.

am3zzw00027393

13.  Remove rear washer hose D.

14.  Install in the reverse order of removal.


Rear washer hose D installation note

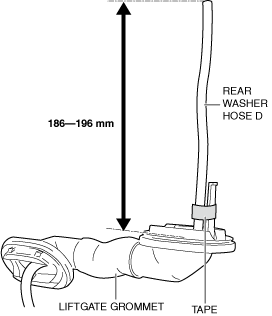

1.  When installing rear washer hose D to the liftgate grommet, install it aligning to the position shown in the figure.

am3zzw00027394
